1977 Cardinal FG N18523

# Note:Complete 1977 Cardinal FG
N18523

Sold

	This 1977 very clean Cardinal FG has a Horton STOL and only 1650 total hours. It was painted with new windows in 1999. The interior was renewed in 2016 and is in very good condition. The panel is simple but effective, with King Navcoms and a digital transponder with ADS-B through a uAvionix tail beacon. The Aera 660 helps with navigation and storm avoidance. The owners have prioritized the functionality and reliability of this aircraft, with several important improvements recently completed. This will be a great airframe to fly as is or on which to add your perfect avionics.
Specifications: 1977 Cardinal 177FG Registration: N18523 Serial Number:17702541 Last Annual: 6/2022 Airframe TT: 1660 Engine TSOH: 1660 Engine TSTOH: 135 Engine TSN: 1660 Prop: TSOH: 2 Fuel Capacity 61 gallons Useful Load ~940 lbs. The recent Top Overhaul in 2018 installed new Superior cylinders. The spar carry-through was inspected and painted in 2020. Prop overhaul in 2022, sold with fresh annual inspection. The aircraft is currently being flown so these numbers may grow slightly.	Click any photo for a larger image.

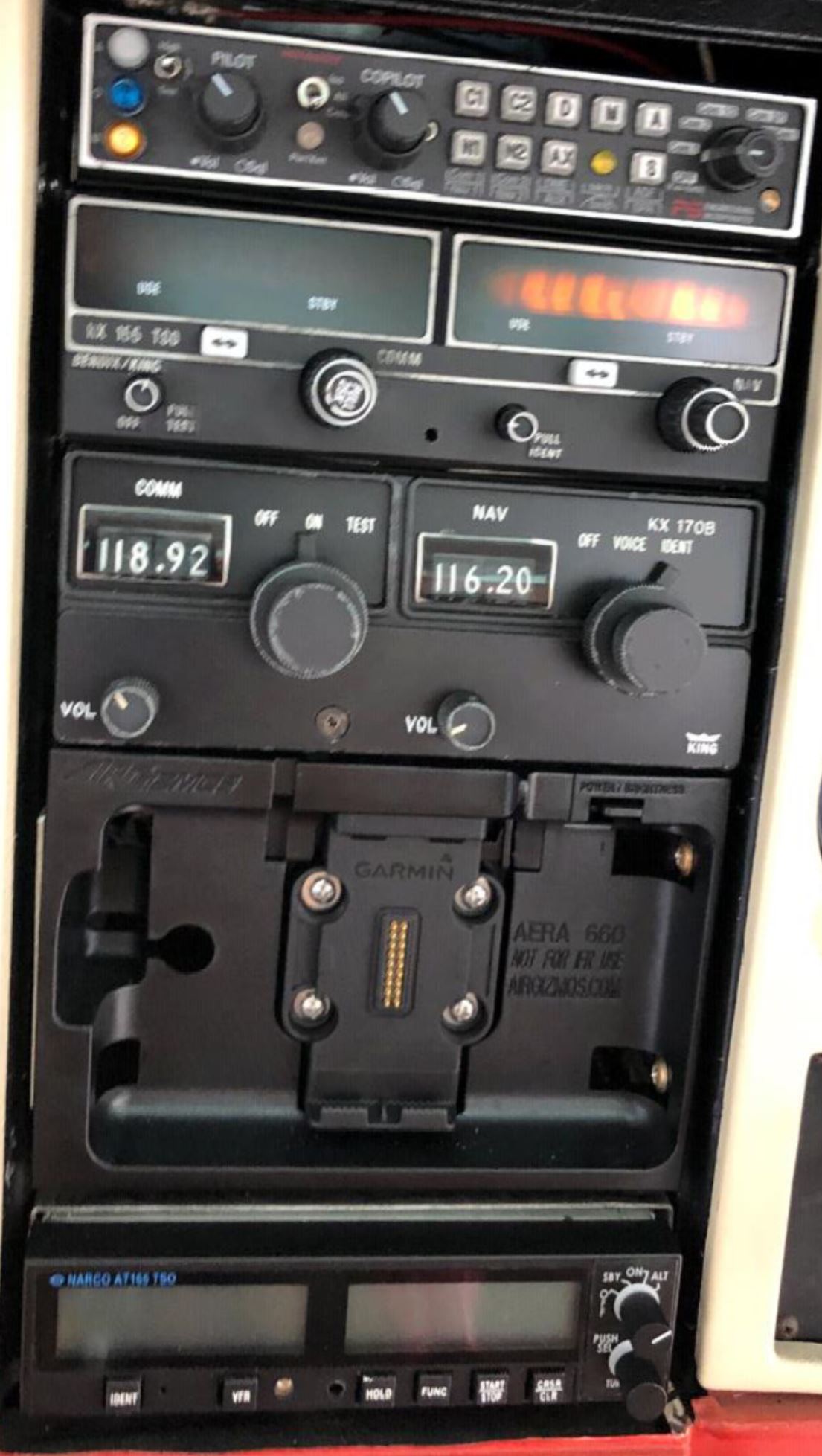

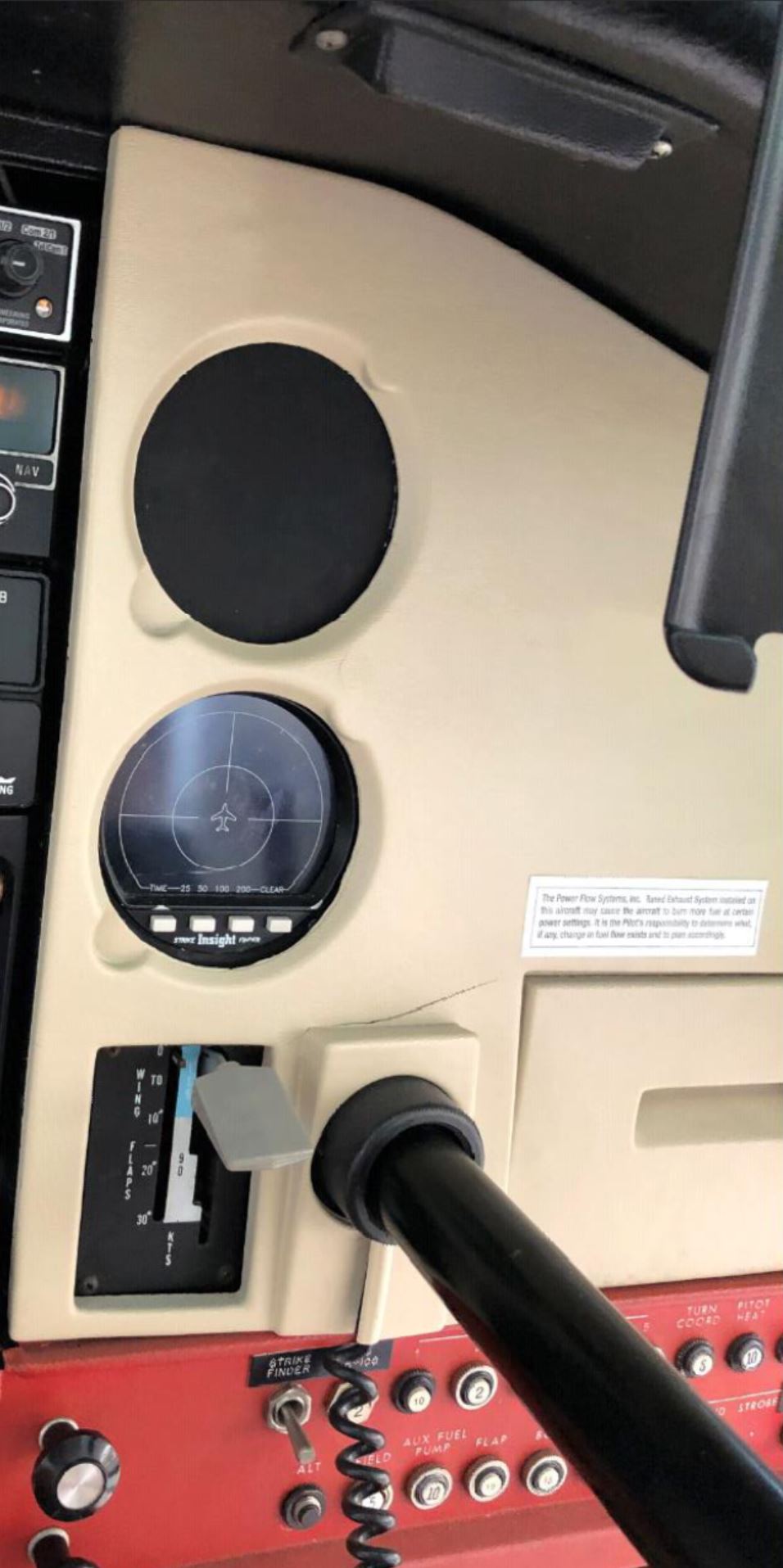

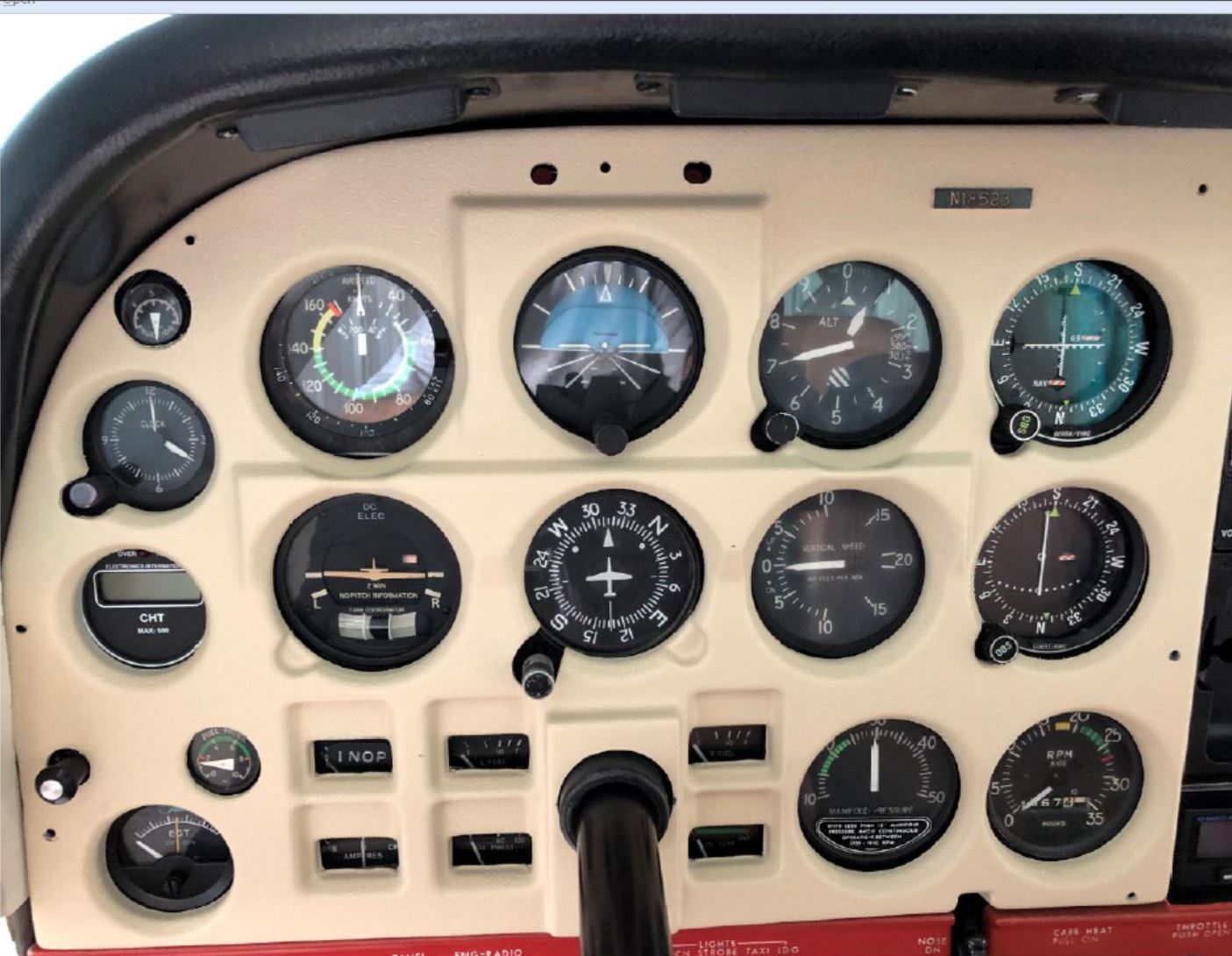

In The Panel: Nav1: King KX-155 Nav2: King KX-170B Audio Panel: PS Engineering PMA6000 Transponder: Narco AT165 Autopilot: None ELT type: 121.5 Other: Aera 660 in dock Insight Strikefinder - may not be working? EI digital CHT C1 Cessna electric clock Avionics Master switch Exhaust fairing (not shown in these photos) Recent work done: Interior in 2016 Rebuilt nose strut 2018 New Goodyear FC II tires with Michelin tubes in 2018 New brakes pads in 2018 Rebuilt carb airbox in 2019 New vacuum pump 2021 New Marvel-Schebler carburetor in 2021 Rebuilt fuel selector and shutoff valves in 2021 Replaced gascolator guts in 2021 New Concorde battery 2021 We use Aeroshell W100plus and Camguard Rigging tuned up in 2019
Installed Equipment: Horton STOL Powerflow Exhaust Articulating pilot seat New Concorde battery 2021 Fuselage handles Oil pan heater Bruce's over the wing cover Copilot PTT LED landing and wingtip lights Wingtip tell-tail indicators
Paint and Interior Painted 1999, fair condition Interior upgraded 2016, very good condition Windows new in 1999 Carpet and plastic in very good condition

Price: Sold Current Location: Clifton, TX (KGDJ) For more information please contact: Keith Peterson at keith@cardinalflyers.com or call me at 847-683-9878 (office - no voicemail) or 847-220-8577 (find me with voicemail)
Logs Engine Log 1 Engine Log 2 Airframe Log 1 Airframe Log 2 Airframe Log 3 Propeller More images
Although every effort has been made to accurately represent the specifications and condition of this aircraft, all information is presented with no warranties expressed or implied and subject to buyer verification. A pre-purchase evaluation for the benefit of the buyer is highly recommended. Aircraft availability is subject to prior sale or removal from market.
