77 Cardinal FG N700PJ

1977 Cardinal 177FG
N700PJ

Sold

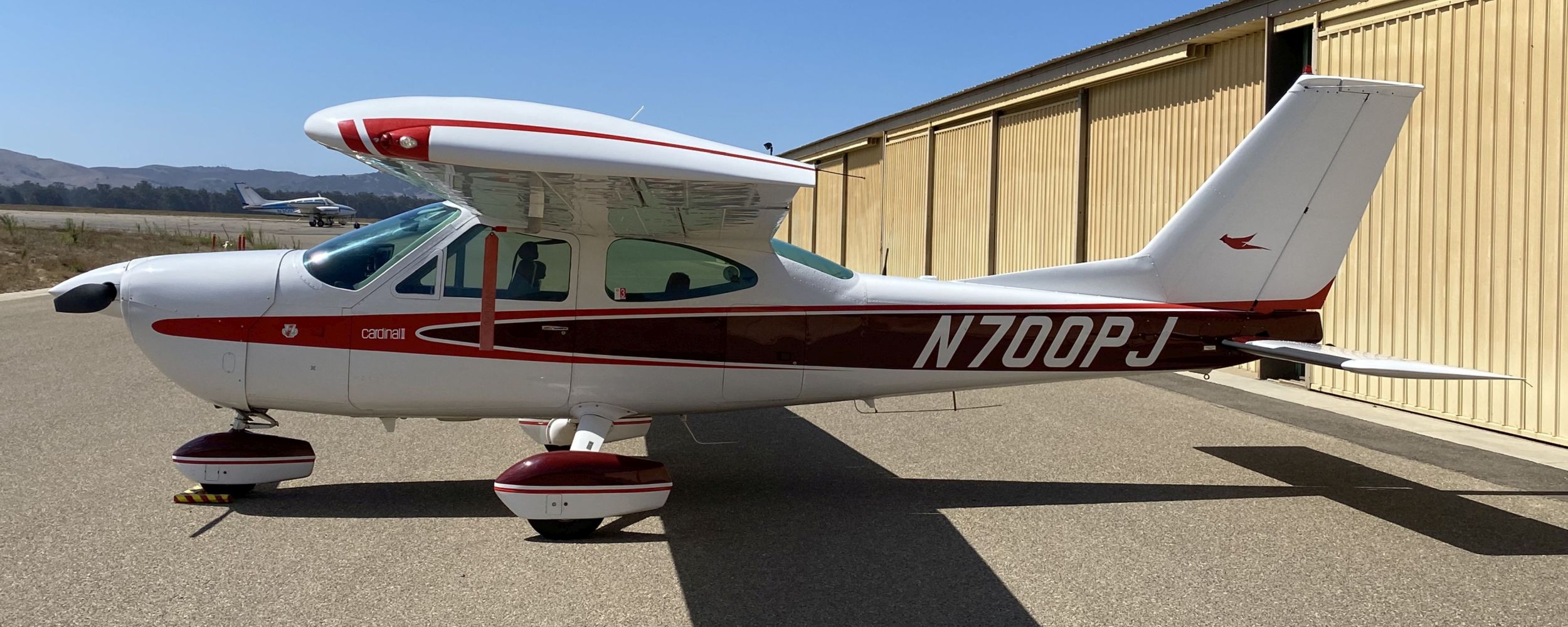

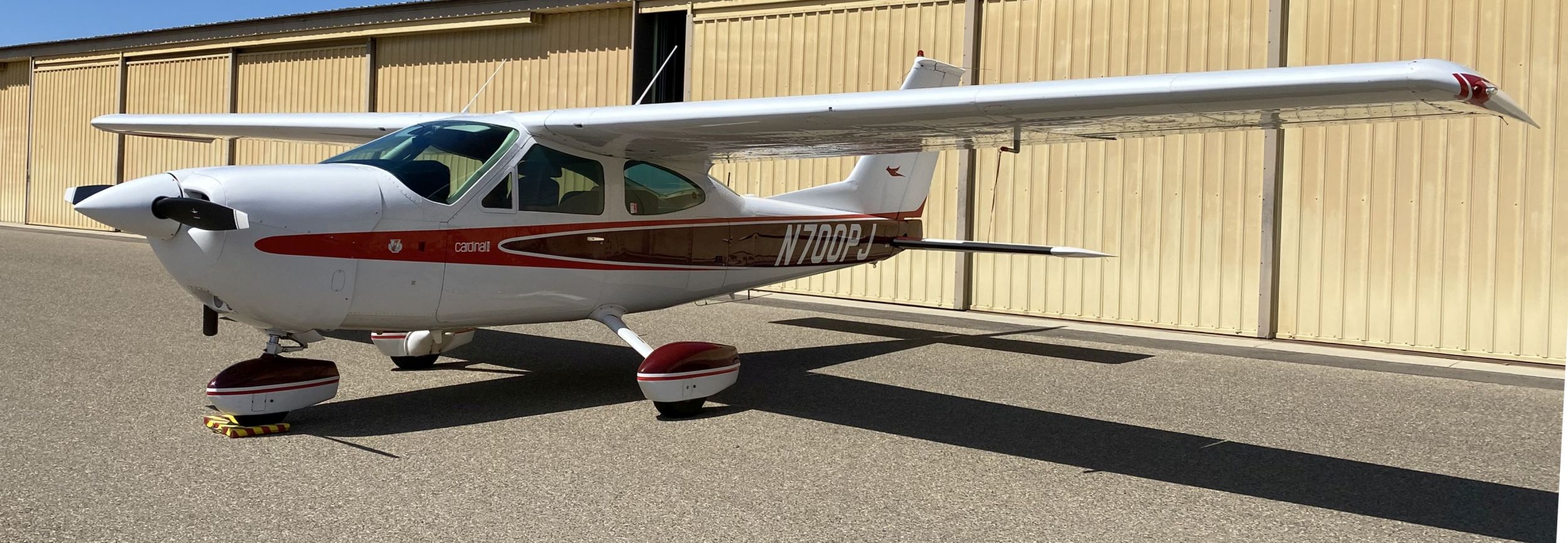

	This is a nicely equipped and well executed Cardinal II FG in very good condition, with a very low time engine. The custom metal panel includes an Aspen EFD_1000 Pro, Garmin GPS175 WAAS moving map, ADS-B weather and traffic displays and a Dynon backup EFIS. The STEC 50 autopilot is IFR capable with altitude hold. The engine has just 64 hours since overhaul. The interior was renewed in 2011, and it has been hangared for decades. Other features include LED landing lights, Concorde battery and more. This Cardinal has been the pride and joy of its owners and is ready to take a new owner across the country in style and comfort.
Specifications: 1977 Cardinal 177FG Registration: N700PJ Serial Number:17702628 Airframe TT: 4703 Engine TSOH: 64 Prop: TSOH: 306 Fuel Capacity: 50 gallons Useful Load: 858 lbs. The overhaul was completed in 2022 by Tim's Aircraft in Long Beach CA Compressions: 76 / 76 / 78 / 74 Oil analysis available Last Annual: 11/8/22 The spar carry through AD has been fully complied with, logged and reported. The aircraft is currently being flown so these numbers may grow slightly.	Slideshow Below Click any photo for a larger image.

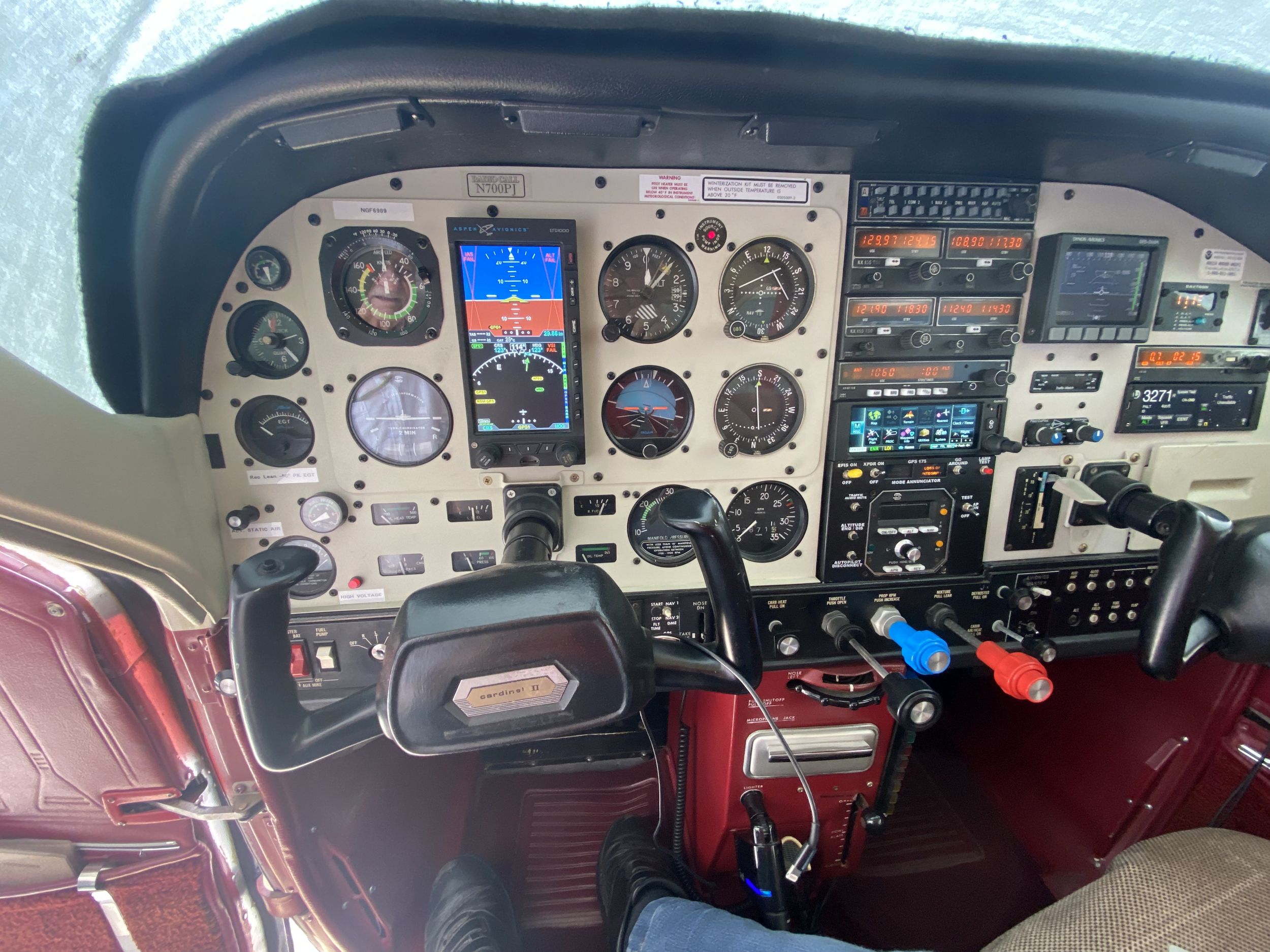

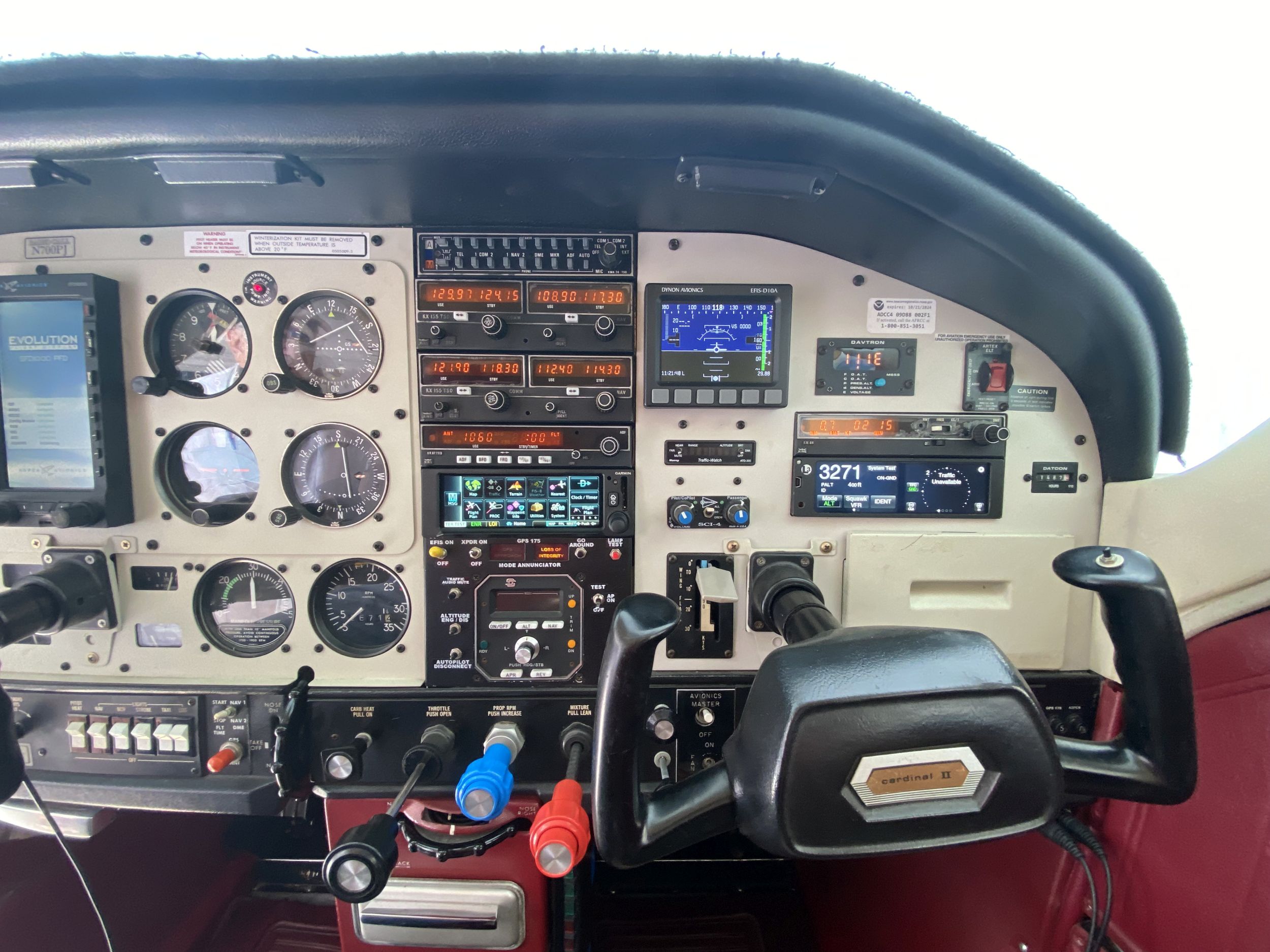

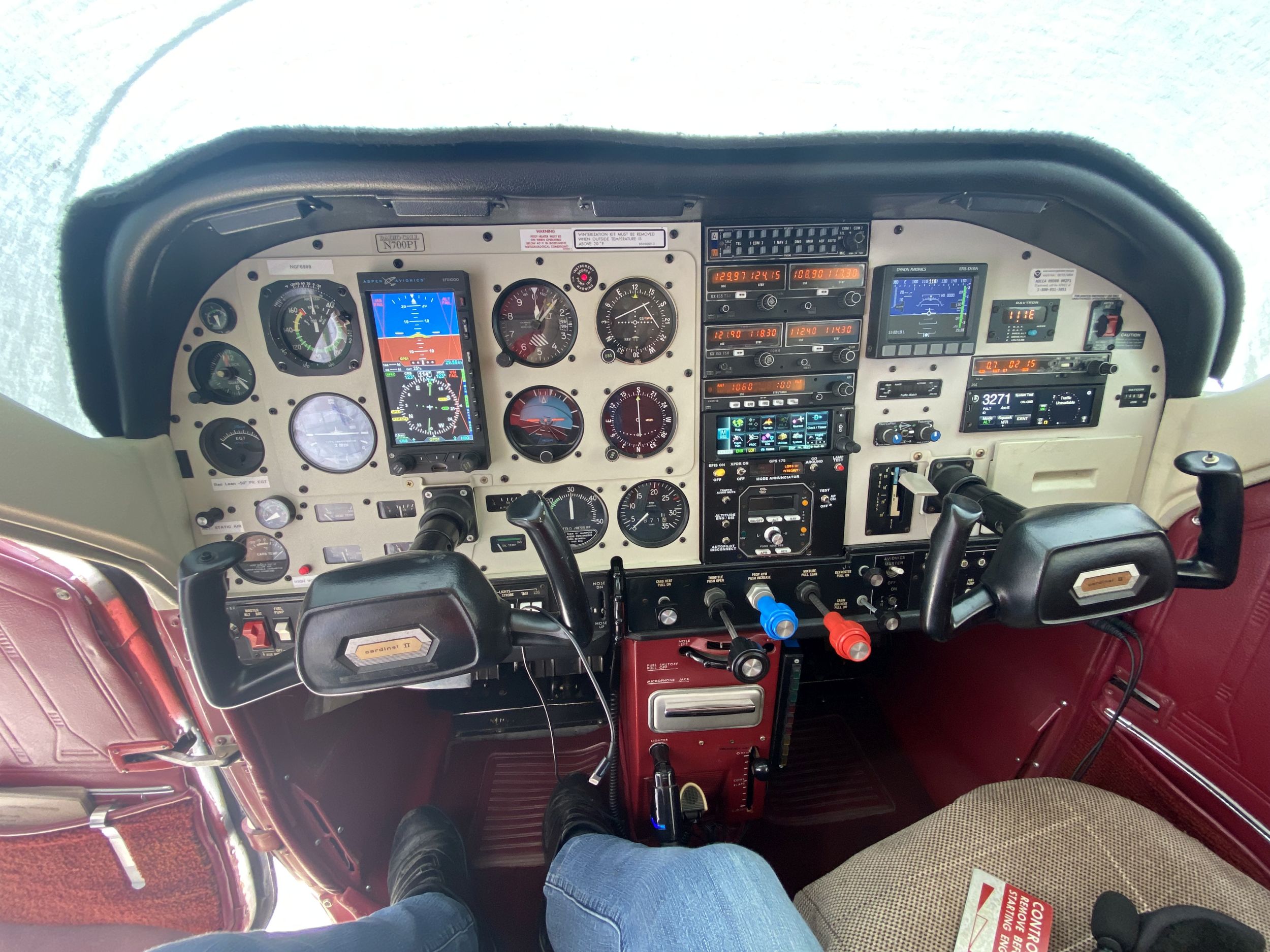

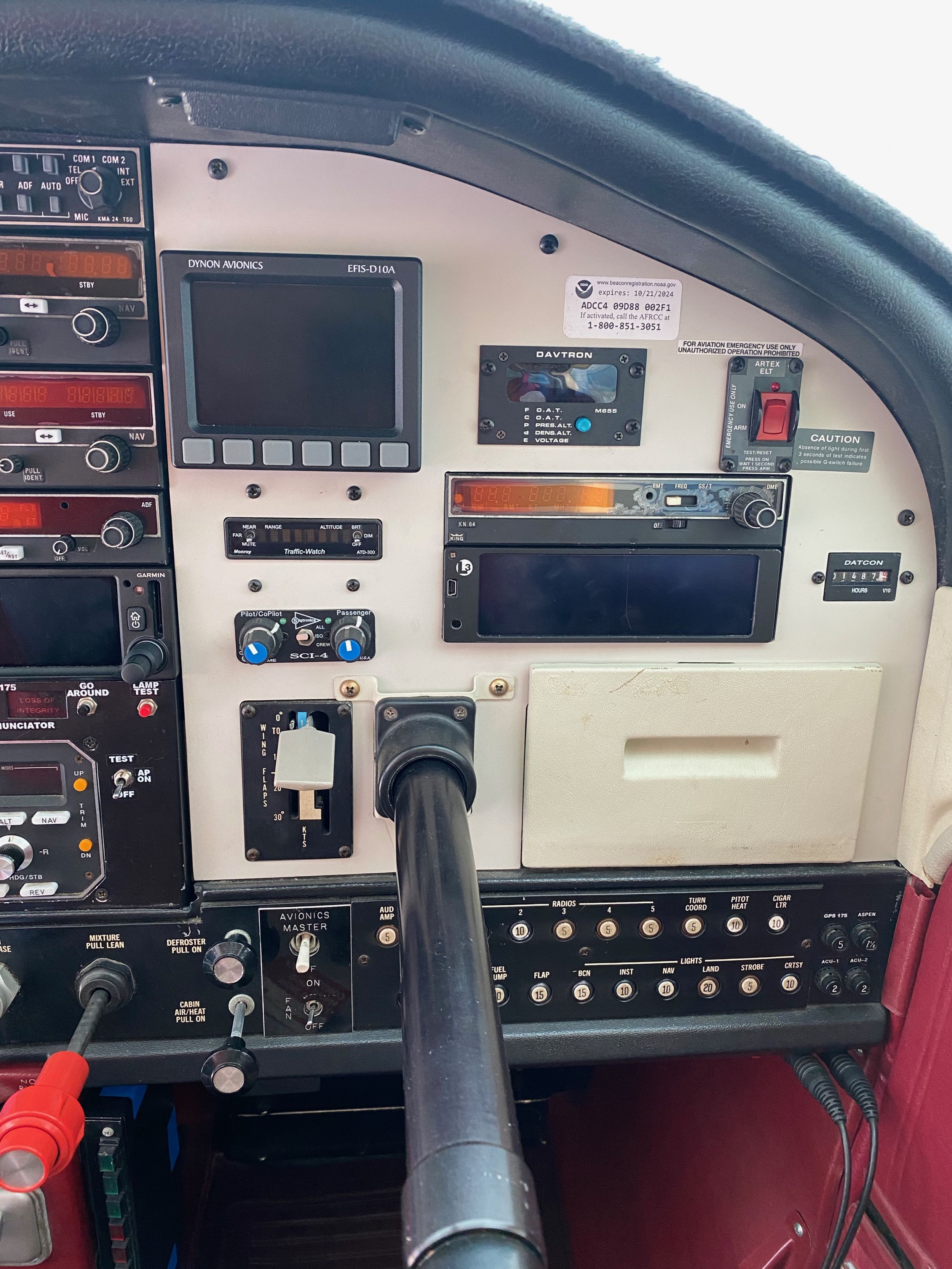

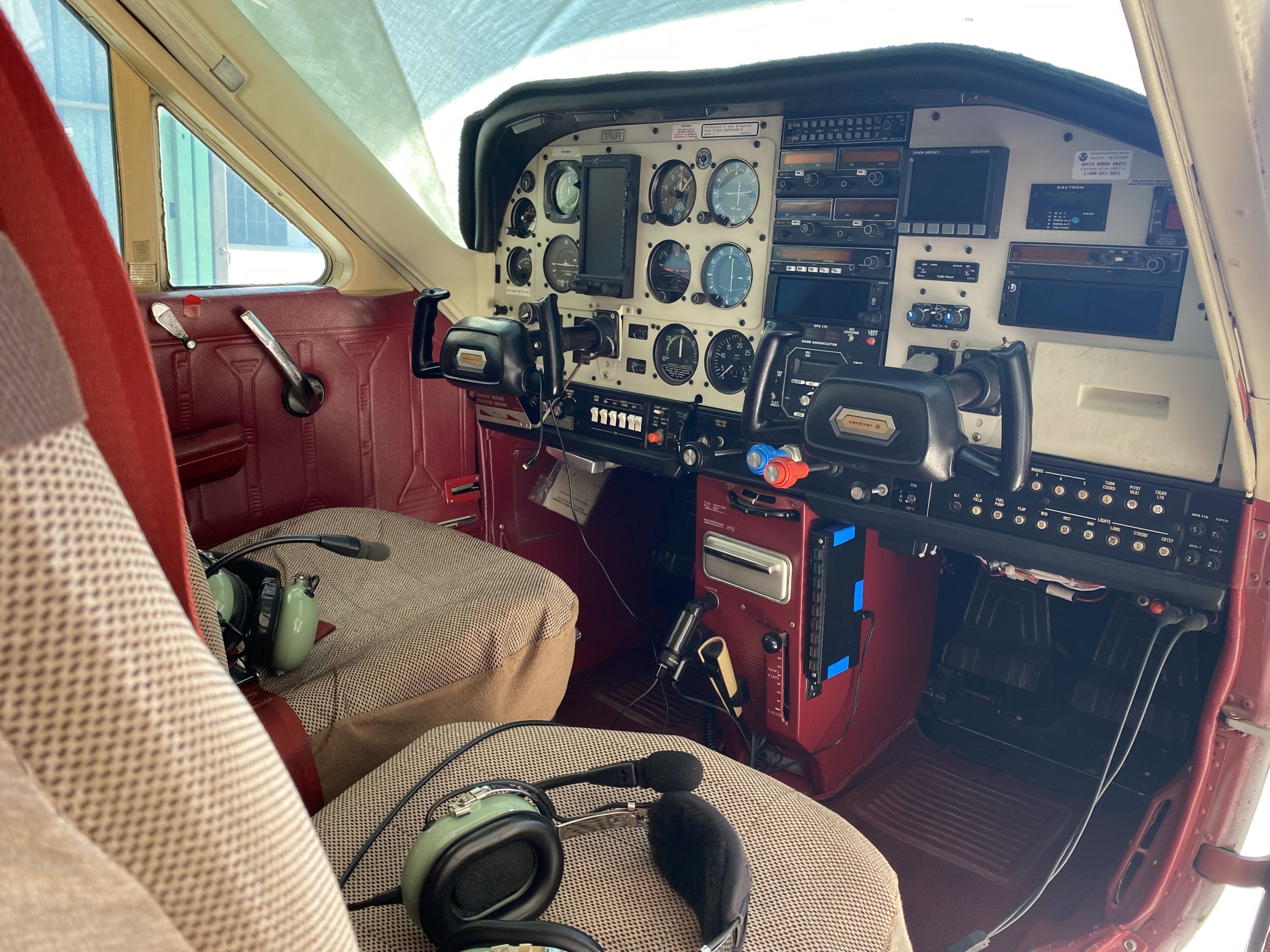

In The Panel: Nav Comm 1: King KX-155 Nav Comm 2: King KX-155 PFD: Aspen EFD1000 Pro Dynon DA10A backup EFIS with GPS-251 antenna Vacuum AI remains as a third backup Garmin GPS 175 WAAS Audio Panel: King KMA-24 Transponder: L3 Lynx NGT 9000 with ADS-B in/out, traffic and weather display Autopilot: STEC 50 with Alt hold Intercom: Sigtronics SCI.4 with pilot/crew isolate Monroy ATD-300 audible traffic detector ELT: ARTEX 455 406 MHz with panel control Davtron M655 indicator (OAT, PA, DA, Volts) TAS airspeed calculation ring Carb temperature indicator Cessna electric clock Custom metal instrument panel EGT gauge The Precise Flight standby vacuum system has been removed, the indicator currently remains in the panel.

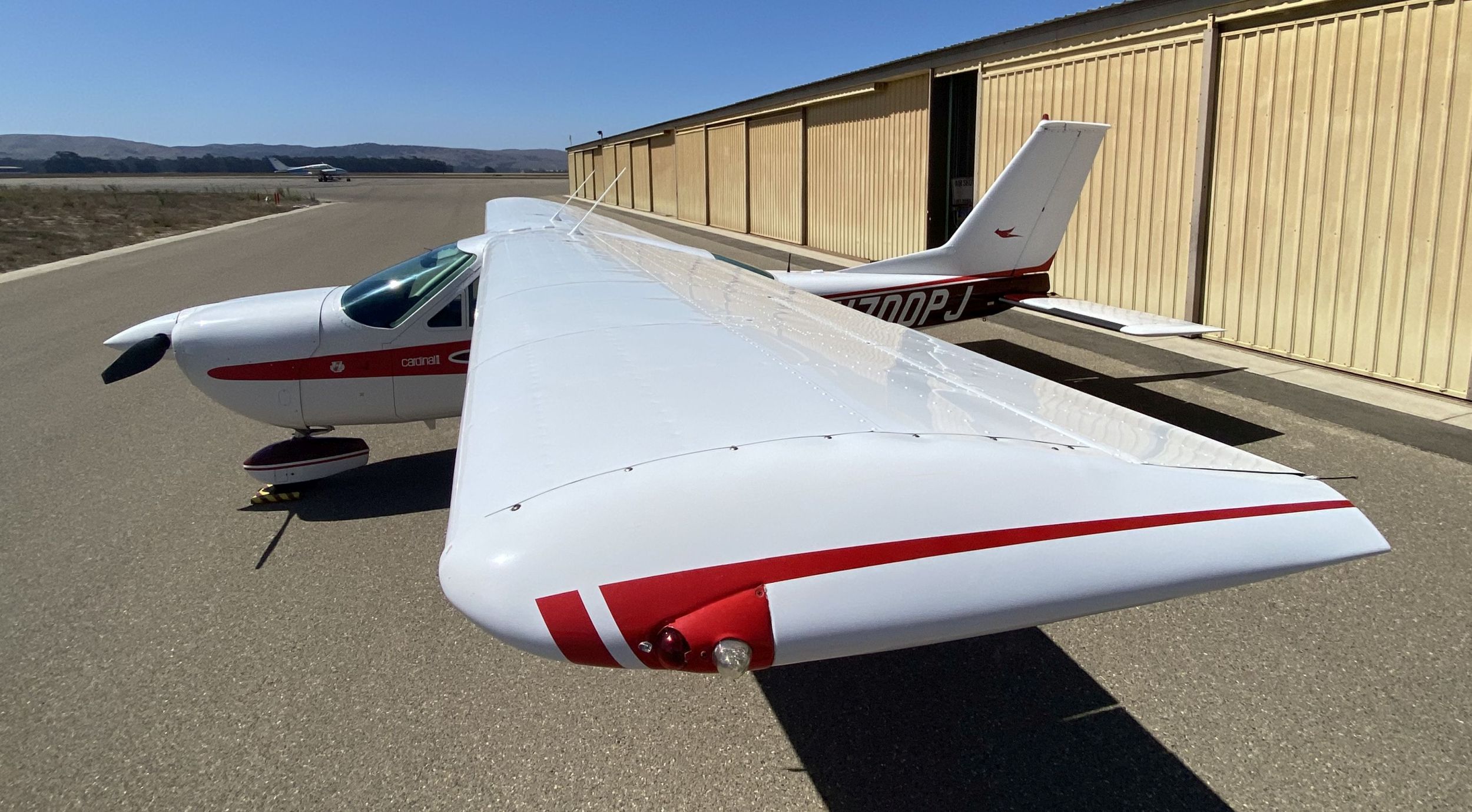

Installed Equipment: Walker air/oil separator LED landing lights Concorde battery Fuselage handles Nav light indicators on wingtips Spin-on oil filter adaptor Co-pilot PTT Custom electronic checklist Avionics master switch Rear seat headphone jacks Portable radio antenna jack on pedestal Halon fire extinguisher Cessna SK210-174A Seat Stop Cessna Wingtip strobes Cessna under wing courtesy lights

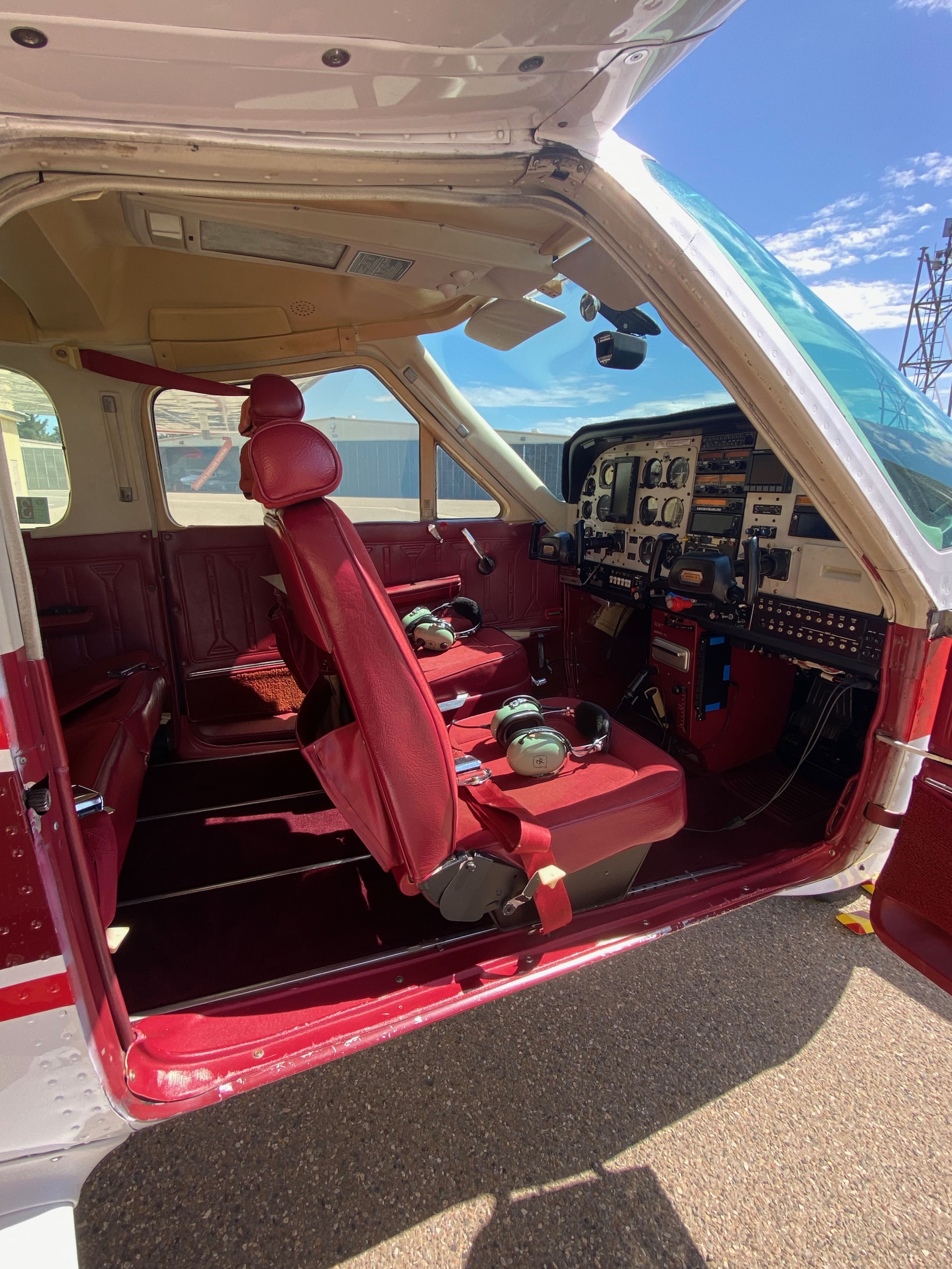

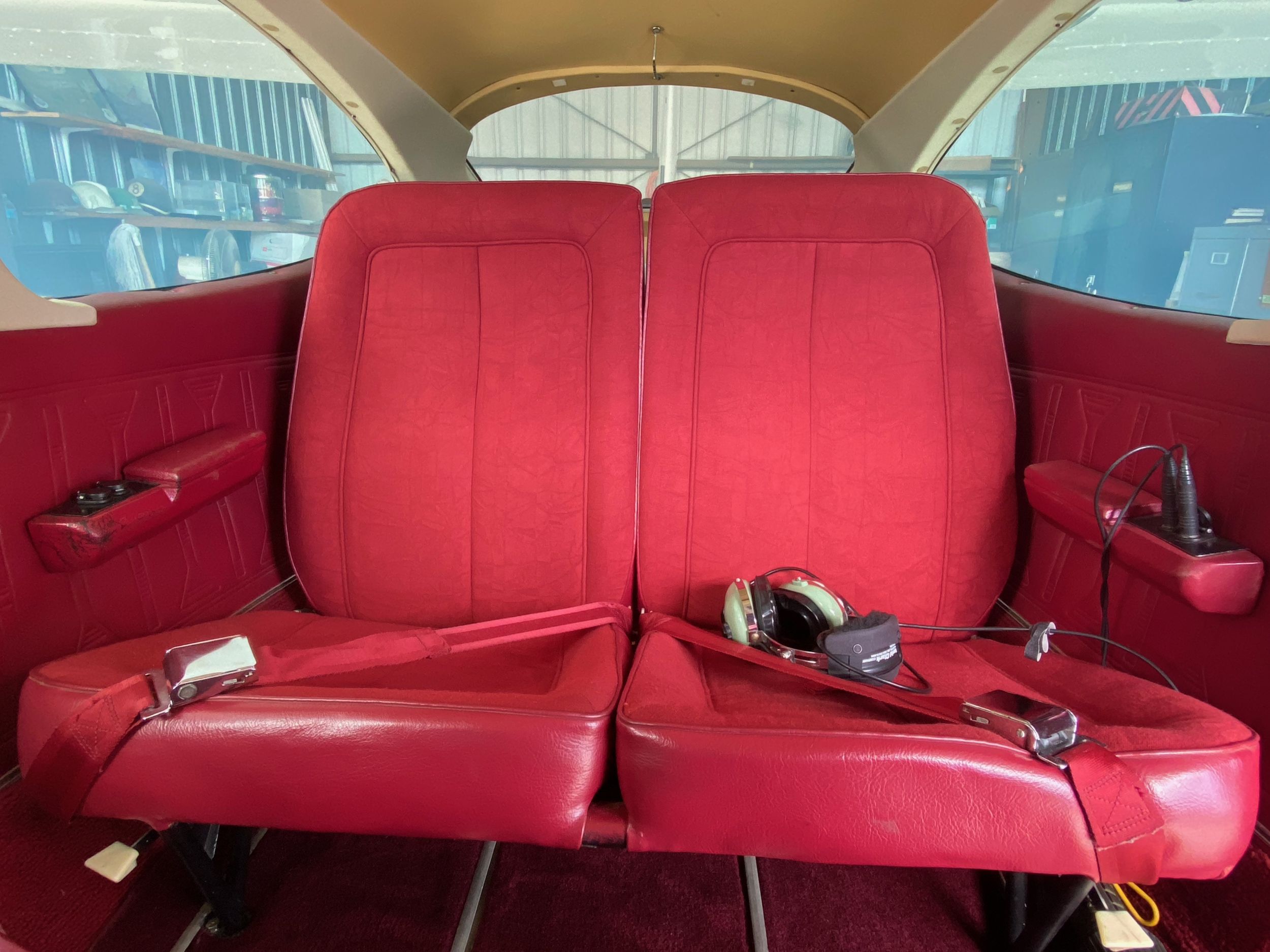

Paint and Interior Painted 1996, always hangared, very good condition Interior refurbished in 2011 - Original covers in good condition had internal foam replaced. New LP aero windshield 2006 Articulating pilot seat Split back rear seat

Price: Sold Current Location: (SMX) Santa Maria, CA For more information please contact: Keith Peterson at keith@cardinalflyers.com or call me at 847-683-9878 (office - no voicemail) or 847-220-8577 (find me with voicemail)
Logs Engine Log 1 Engine Log 2 Engine Log 3 Airframe Log 1 Airframe Log 2 Airframe Log 3 Airframe Log 4 Prop 1 Prop 2

Slideshow Use < > keys to step through all images 1 / 26 2 / 26 3 / 26 4 / 26 5 / 26 6 / 26 7 / 26 8 / 26 9 / 26 10 / 26 11 / 26 12 / 26 13 / 26 14 / 26 15 / 26 16 / 26 17 / 26 18 / 26 19 / 26 20 / 26 21 / 26 22 / 26 23 / 26 24 / 26 25 / 26 26 / 26 < >
Although every effort has been made to accurately represent the specifications and condition of this aircraft, all information is presented with no warranties expressed or implied and subject to buyer verification. A pre-purchase evaluation for the benefit of the buyer is highly recommended. Aircraft availability is subject to prior sale or removal from market.
