76 Cardinal Turbo RG N7504V

1976 Cardinal 177 Turbo RG
N7504V

Sold

	This Turbo Cardinal is recently and very nicely put together. The turbo is the latest GAMI version, with intercooler, installed on a fresh -A1B6 engine. A Hartzell Trailblazer completes this outstanding powerplant. The metal panel holds a Garmin 750, dual G5's, Garmin GMA-350C, Garmin GTX-345 transponder with ADS-B in and out, a JPI EDM900 and more. The autopilot is a Garmin GFC500 with pitch trim, controlled by an Avion yoke. There are many additional extras, like full LED lighting, GAMI injectors, BAS seat belts and more. This Cardinal is freshly built and ready to carry it's new owner at speed and altitude, in style and comfort.
Specifications: 1976 Cardinal 177 Turbo RG Registration: N7504V Serial Number:177RG00803 Airframe TT: 3228 Engine TSOH: 43 Engine Type: IO-360-A1B6 with TATI Stage 3 Turbo Prop: Hartzell Trailblazer Prop: TSN: 43 Fuel Capacity: 61 gallons Useful Load: 962 lbs. The overhaul was completed in 2022 by Western Skyways Compressions: 78 / 77 / 78 / 78 /80 Last Annual: 12/2024 Last Static Test: 8/1/23 Mags overhauled 2022 Spar status: signed off on March 20, 2023	A recent (4/29/22) Cardinal Inspection by Keith Peterson is available for this aircraft at reduced cost. Slideshow Below Click any photo below for a larger image.

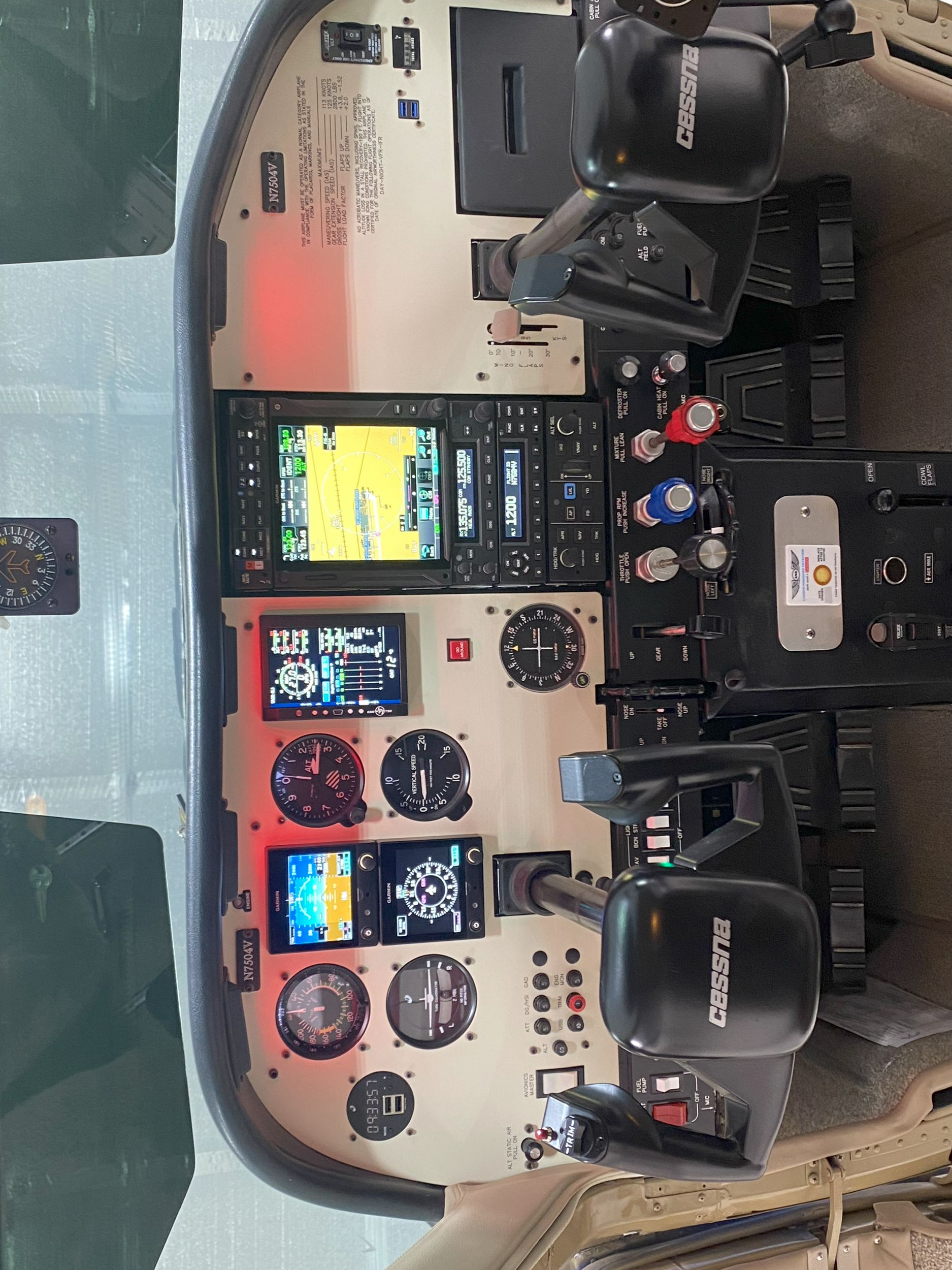

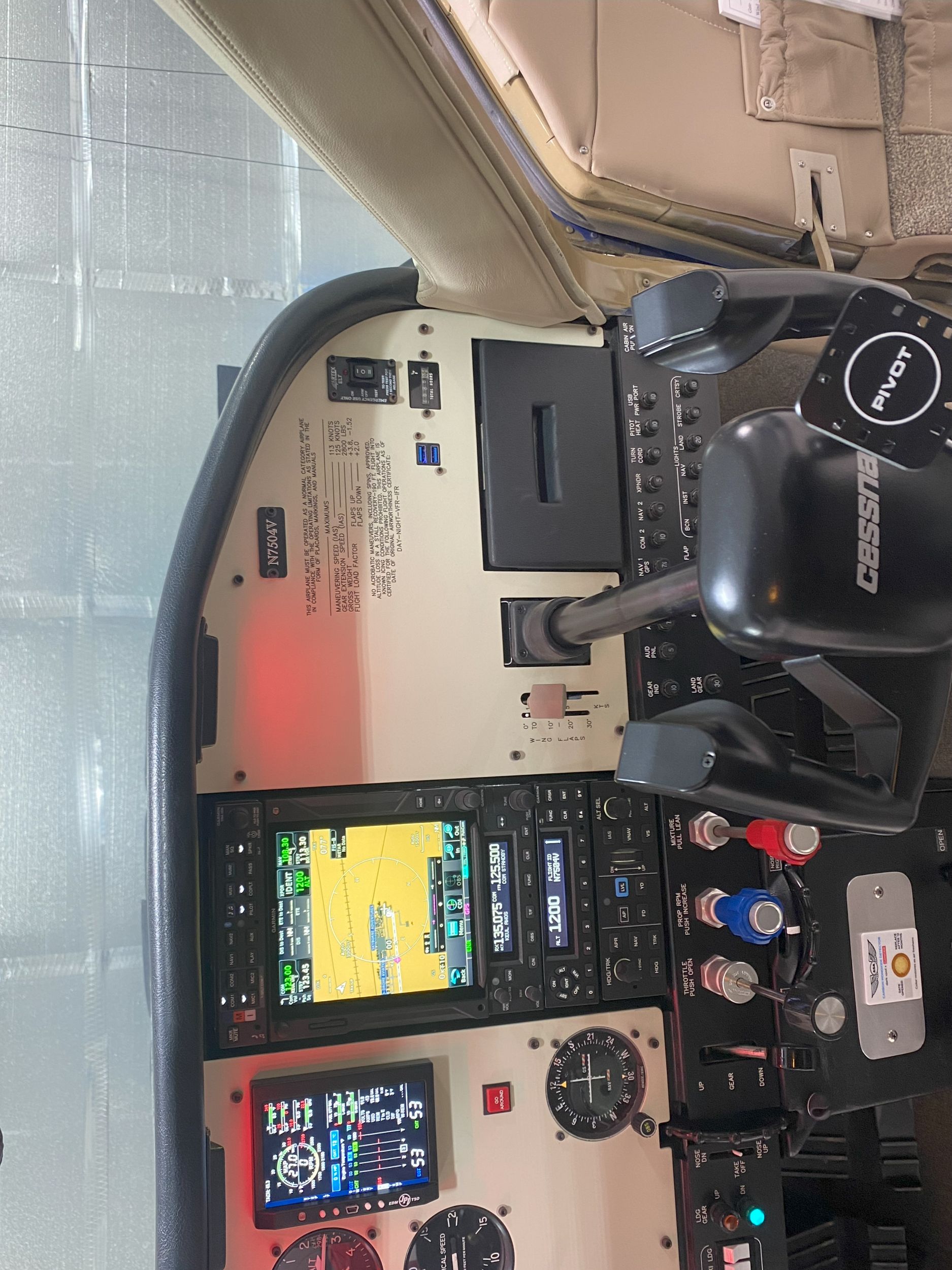

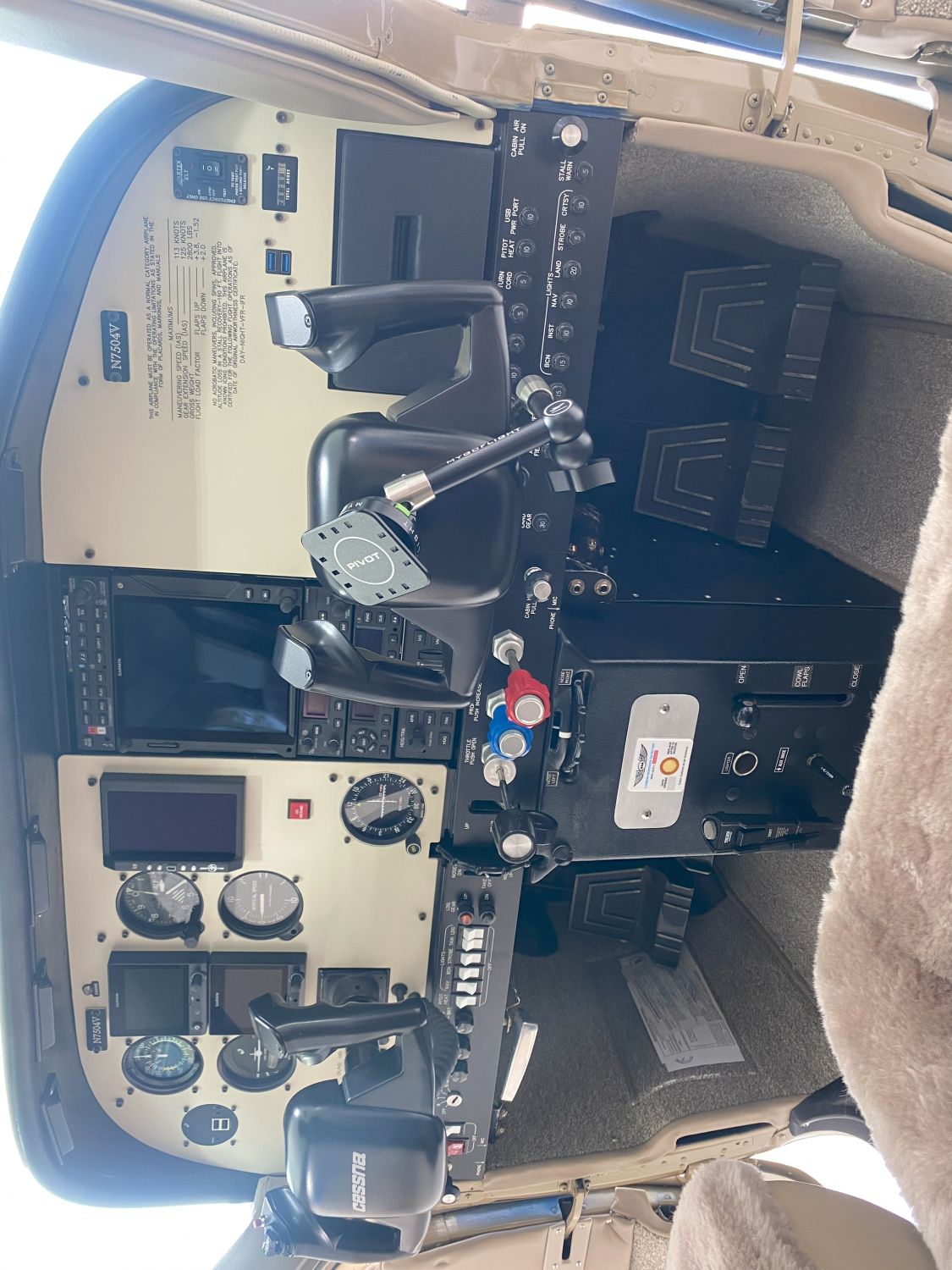

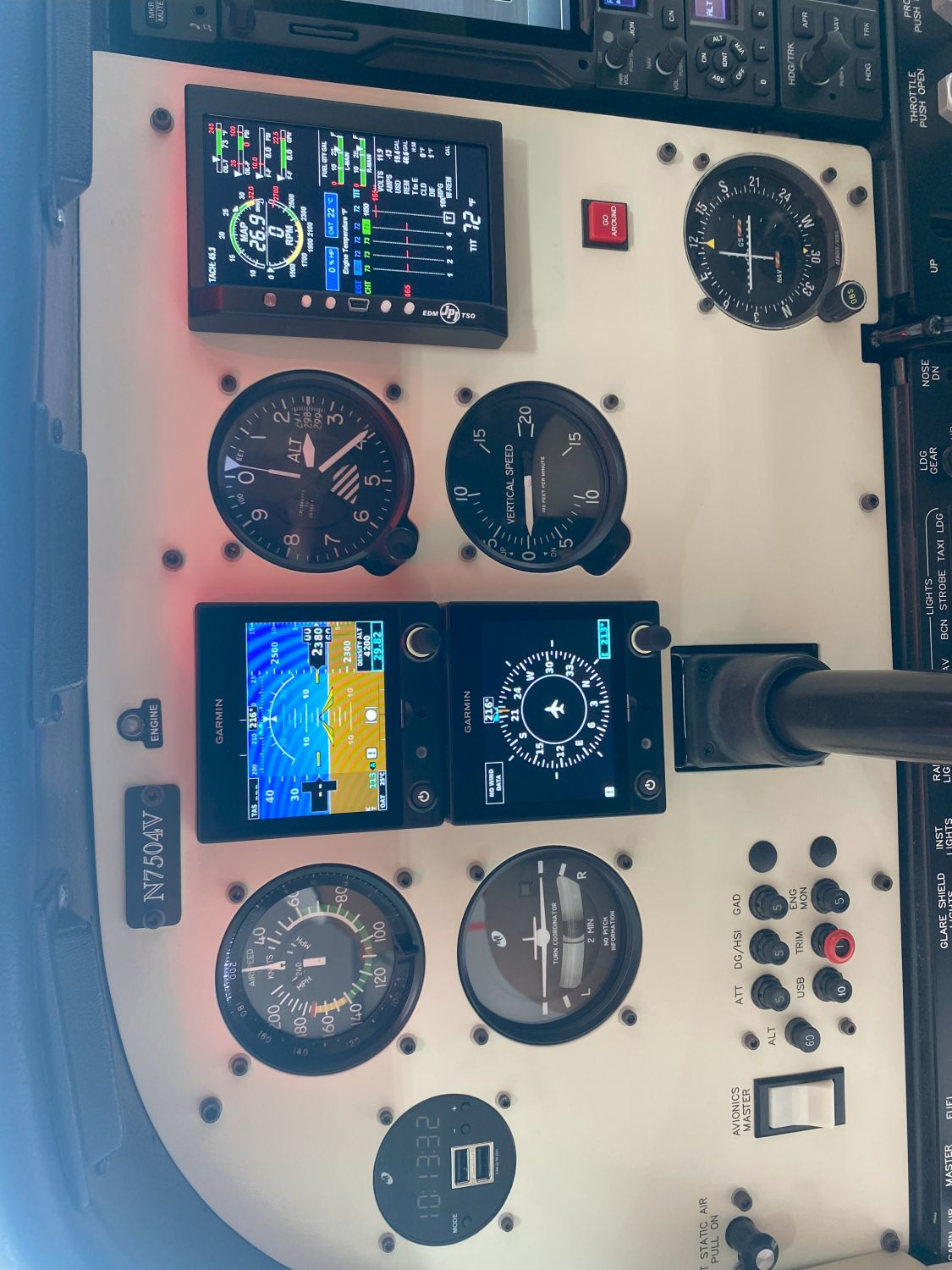

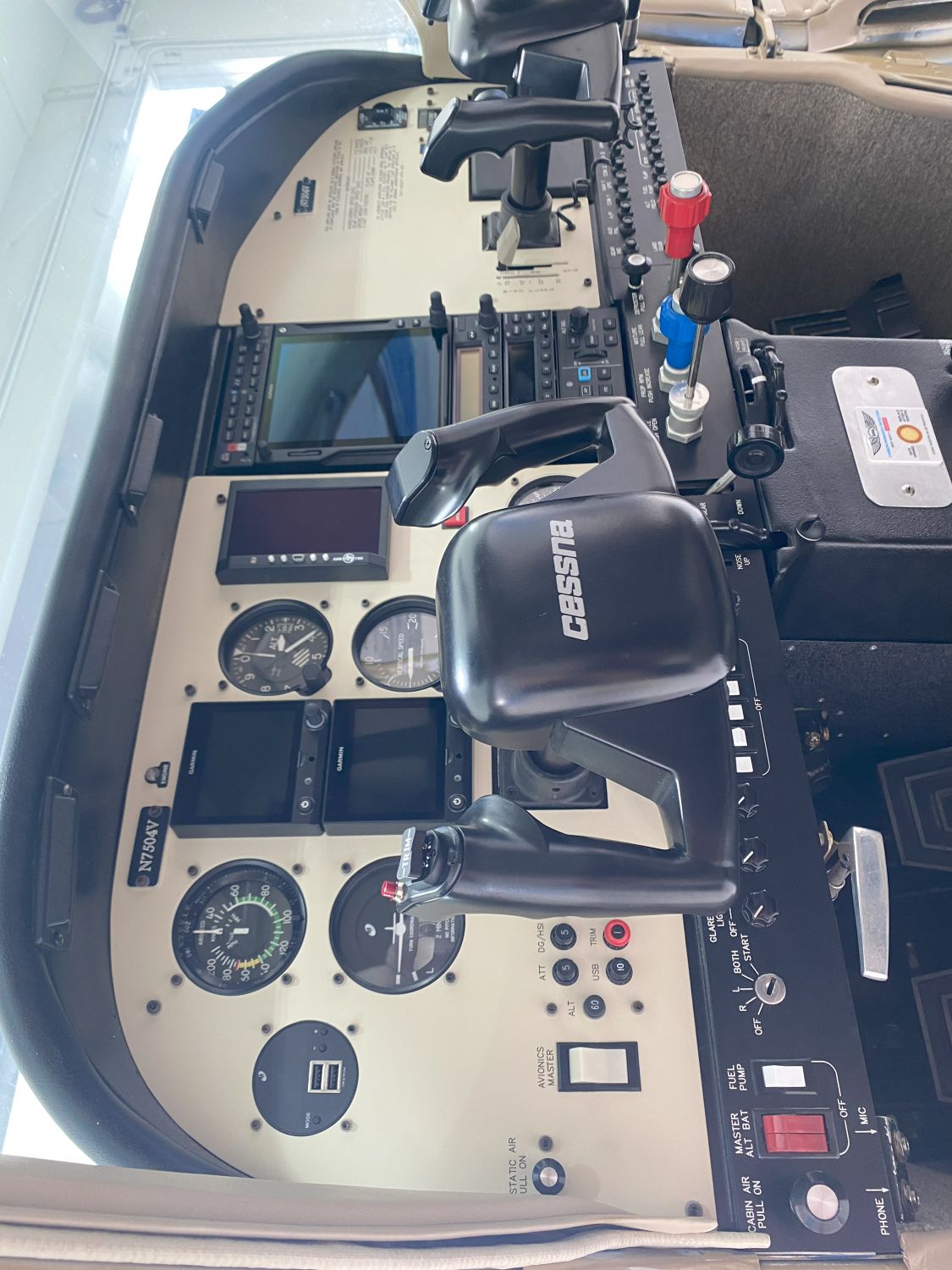

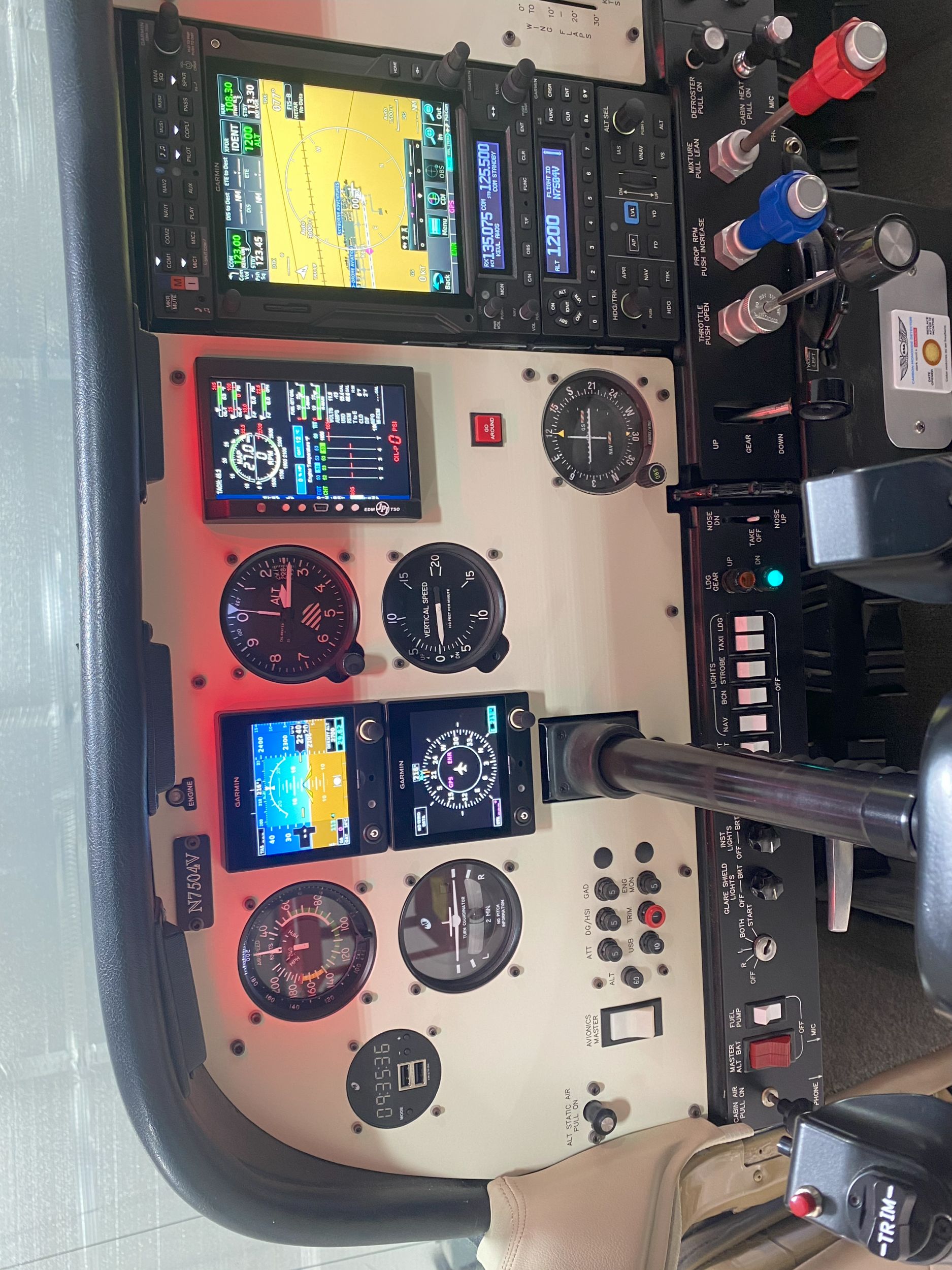

In The Panel: NavComm1: Garmin 750Xi NavComm2: Garmin GNC255A PFD: Dual Garmin G5s Audio Panel: Garmin GMA-350C Transponder: Garmin GTX-345 with ADS-B in/out Autopilot: Garmin GFC-500 with pitch trim Engine Monitor: JPI EDM 900 with Fuel Flow ELT: Airtex 345 406/121.5 with remote on panel USB/Clock: MidContinent True Blue Midcontinent backup turn coordinator

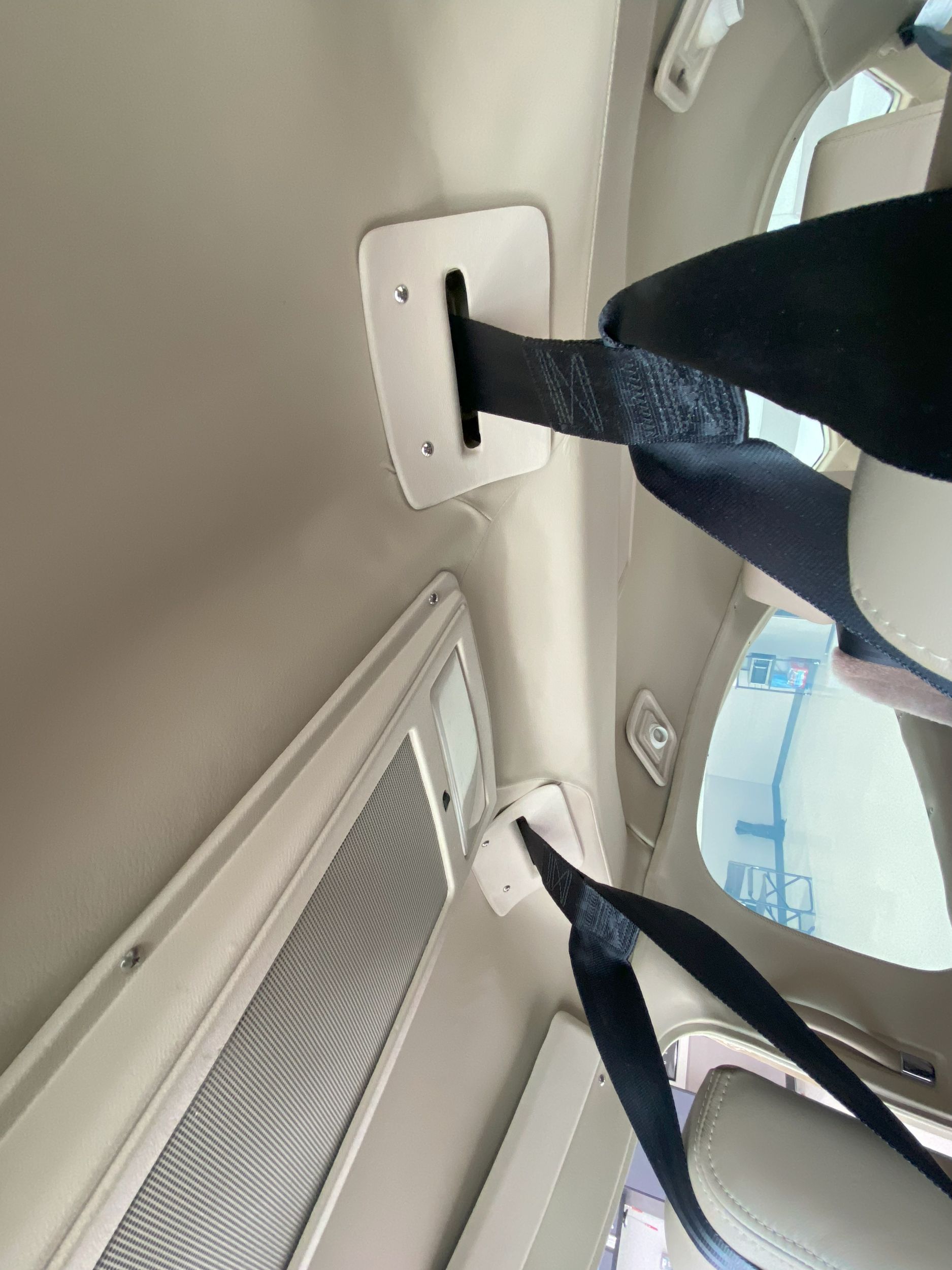

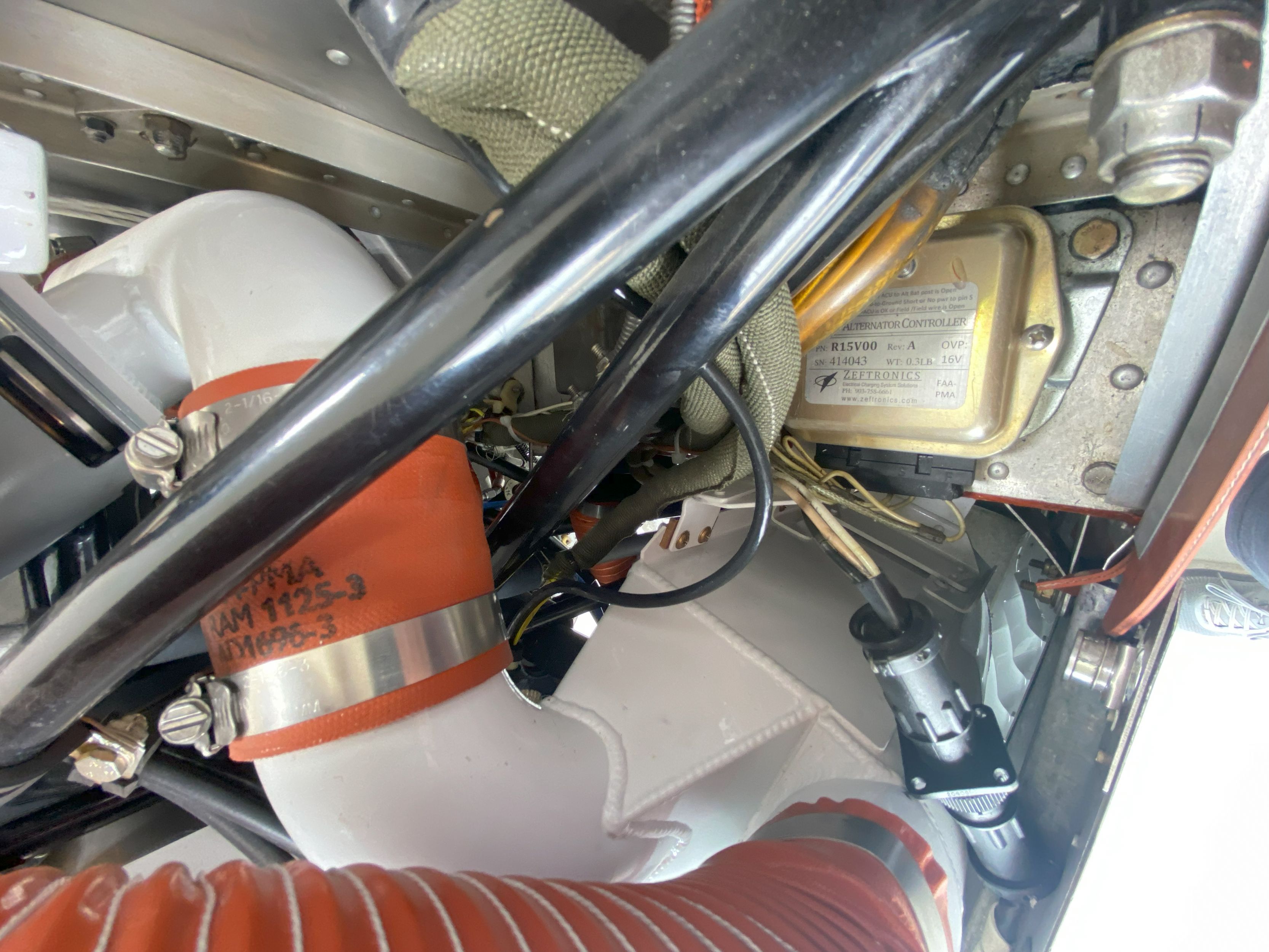

Installed Equipment: Engine: Pre-heater PlanePower Alternator GAMI Injectors Brackett air filter Stage 3 TATI Turbo with Intercooler Airframe: Metal panel Nulight and VAL CLA-500 instrument lighting system Metal lower sub-panel Avion control yokes AeroLED Pulsar wingtip LED nav/strobe lights AeroLED Suntail rear position light AeroLED SunSpot taxi and landing lights Articulating pilot seat Articulating copilot seat Landing gear mirror BAS Seat Belts Rear seat shoulder harnesses Rosen visors Fuselage handles Extras: Mountain High O2 system

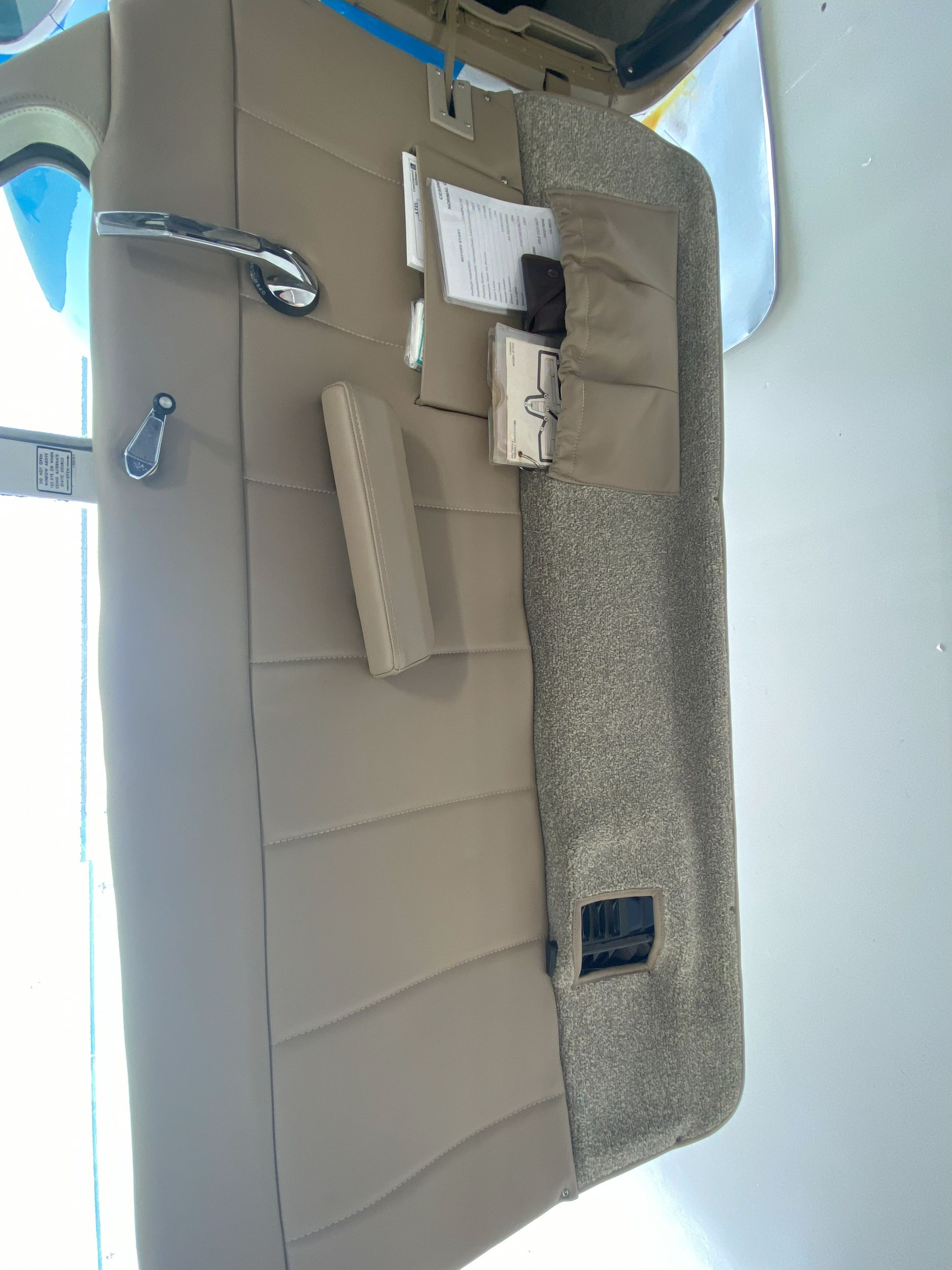

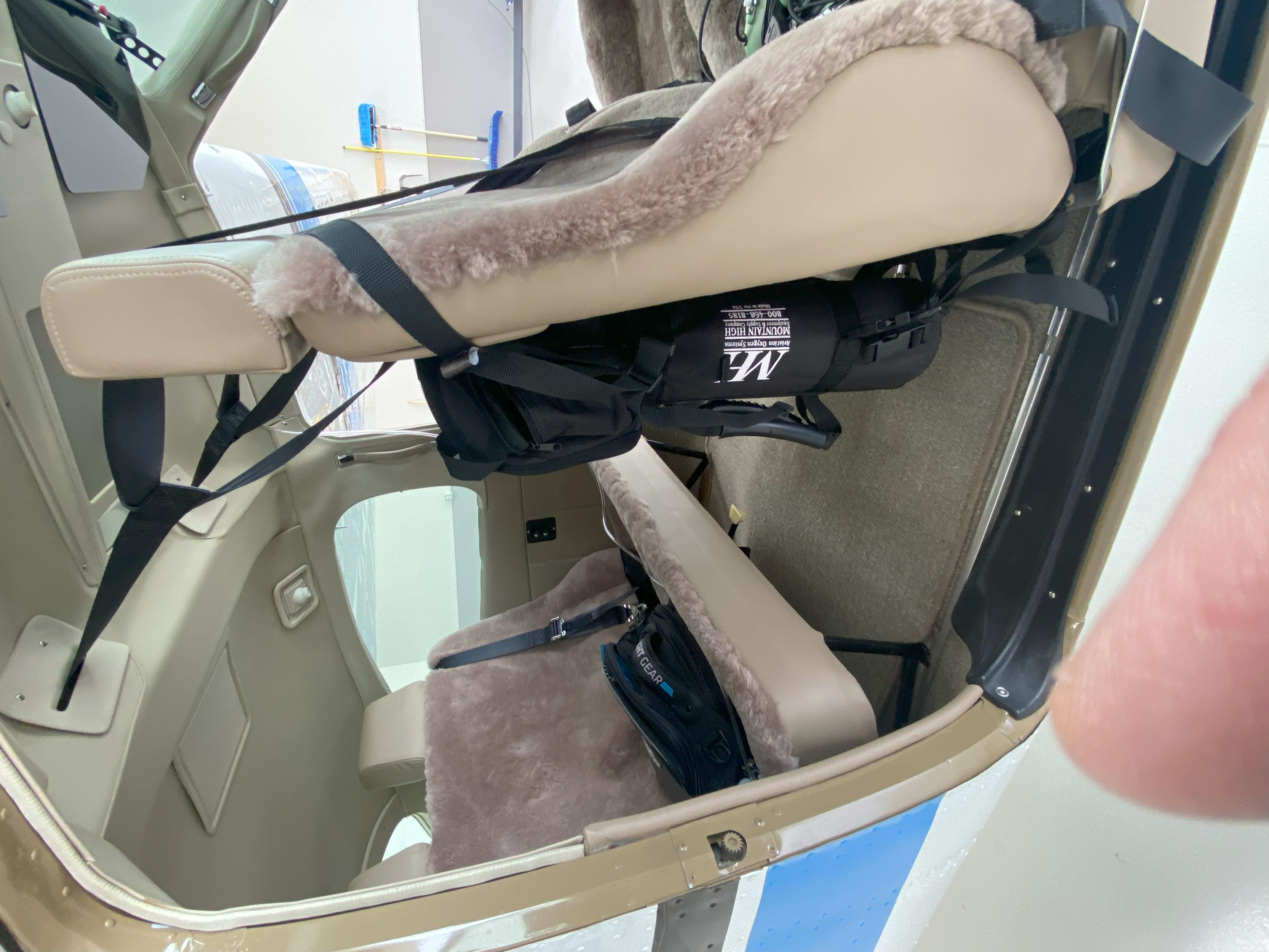

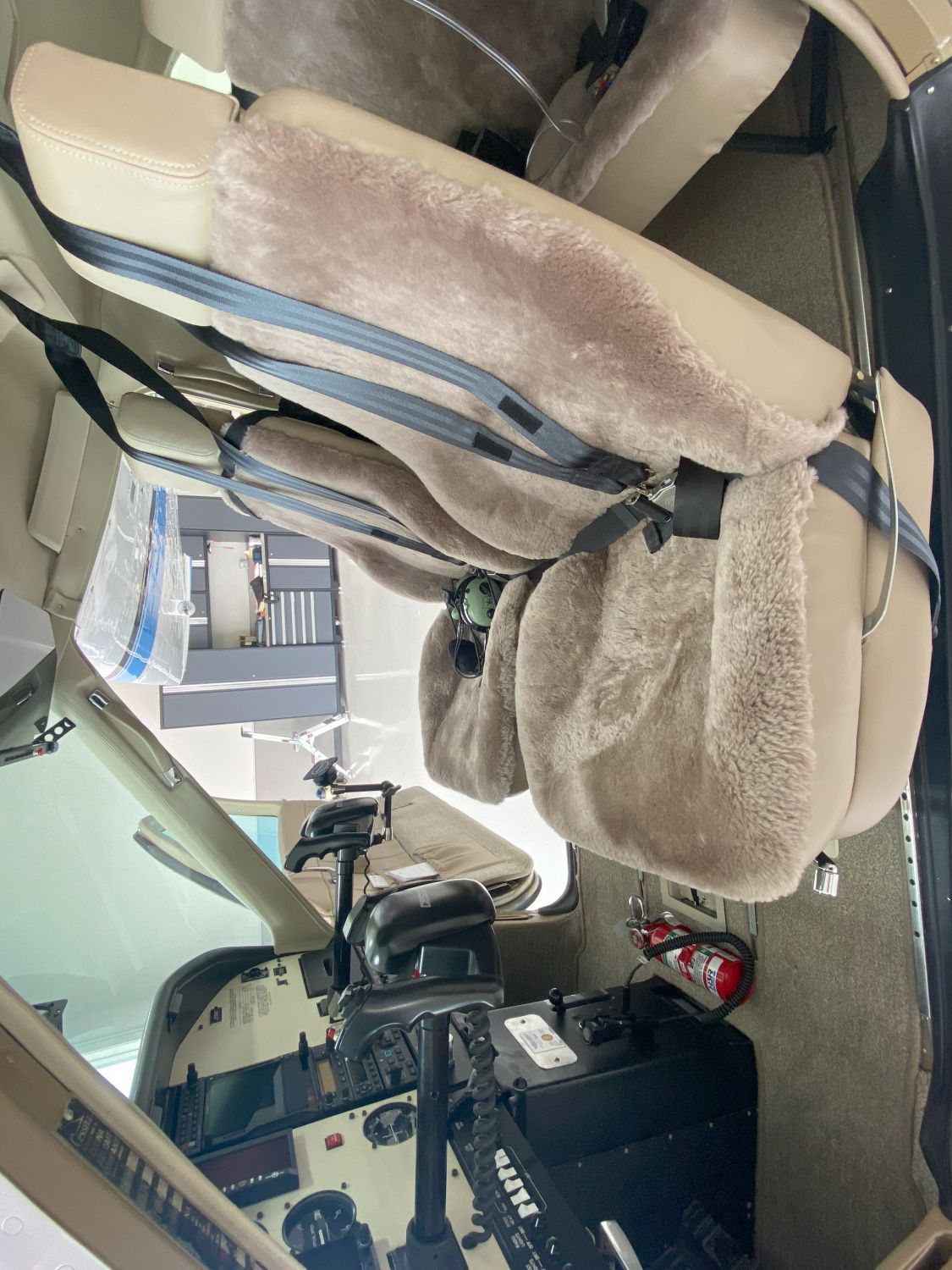

Paint and Interior New interior 2023 Sheepskin seats Painted in 1989, still in good condition

Price: Sold Current Location: Caldwell, ID (KEUL) For more information please contact: Keith Peterson at keith@cardinalflyers.com or call me at 847-683-9878 (office - no voicemail) or 847-220-8577 (find me with voicemail)

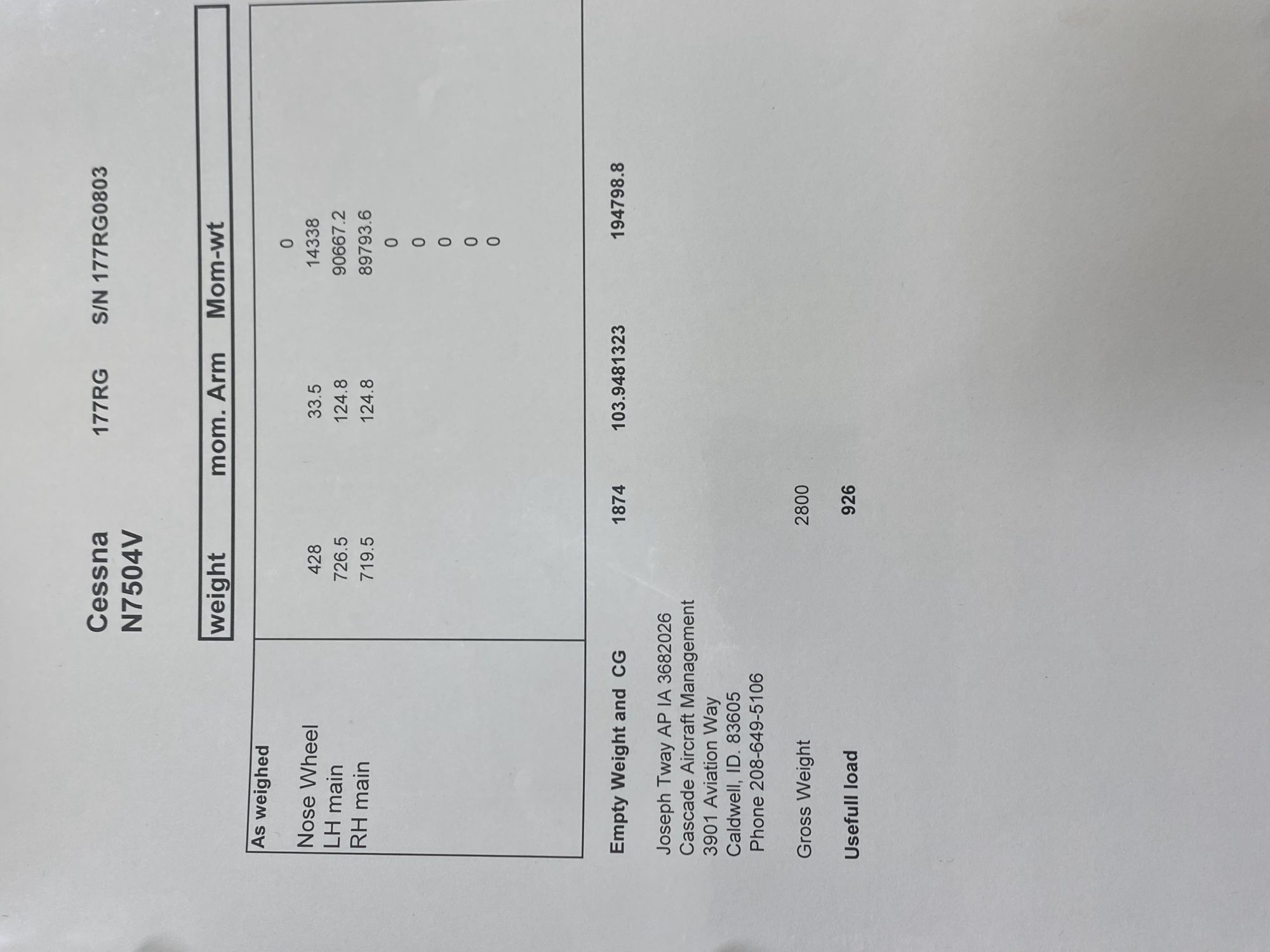

Logs Engine Log 1 Engine Log 2 Airframe Log 1 Airframe Log 2 Airframe Log 3 Airframe Log 4 Propeller Weight and Balance ADs and misc


Slideshow Use <> keys to step through all images 1 / 26 2 / 26 3 / 26 4 / 26 5 / 26 6 / 26 7 / 26 8 / 26 9 / 26 10 / 26 11 / 26 12 / 26 13 / 26 14 / 26 15 / 26 16 / 26 17 / 26 18 / 26 19 / 26 20 / 26 21 / 26 22 / 26 23 / 26 24 / 26 25 / 26 26 / 26 < >
Although every effort has been made to accurately represent the specifications and condition of this aircraft, all information is presented with no warranties expressed or implied and subject to buyer verification. A pre-purchase evaluation for the benefit of the buyer is highly recommended. Aircraft availability is subject to prior sale or removal from market.
