69 Cardinal A FG N30346

1969 Cardinal 177A FG
N30346

Sold

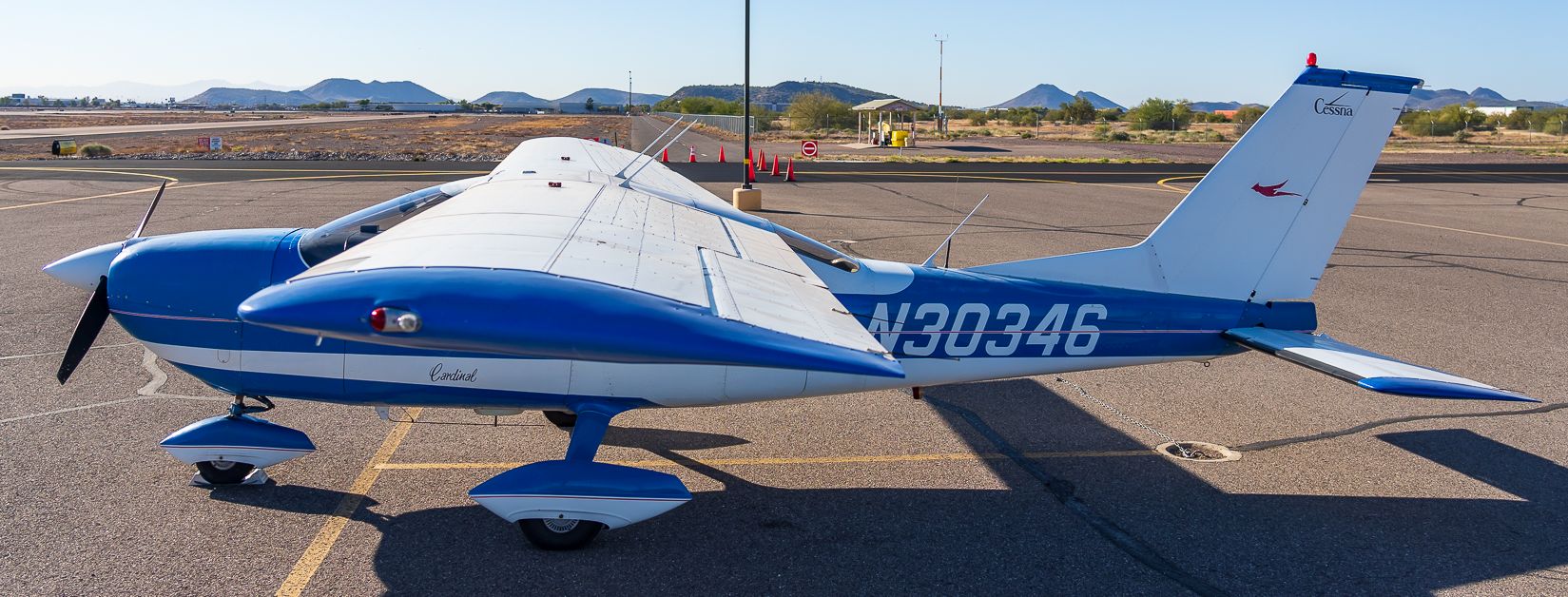

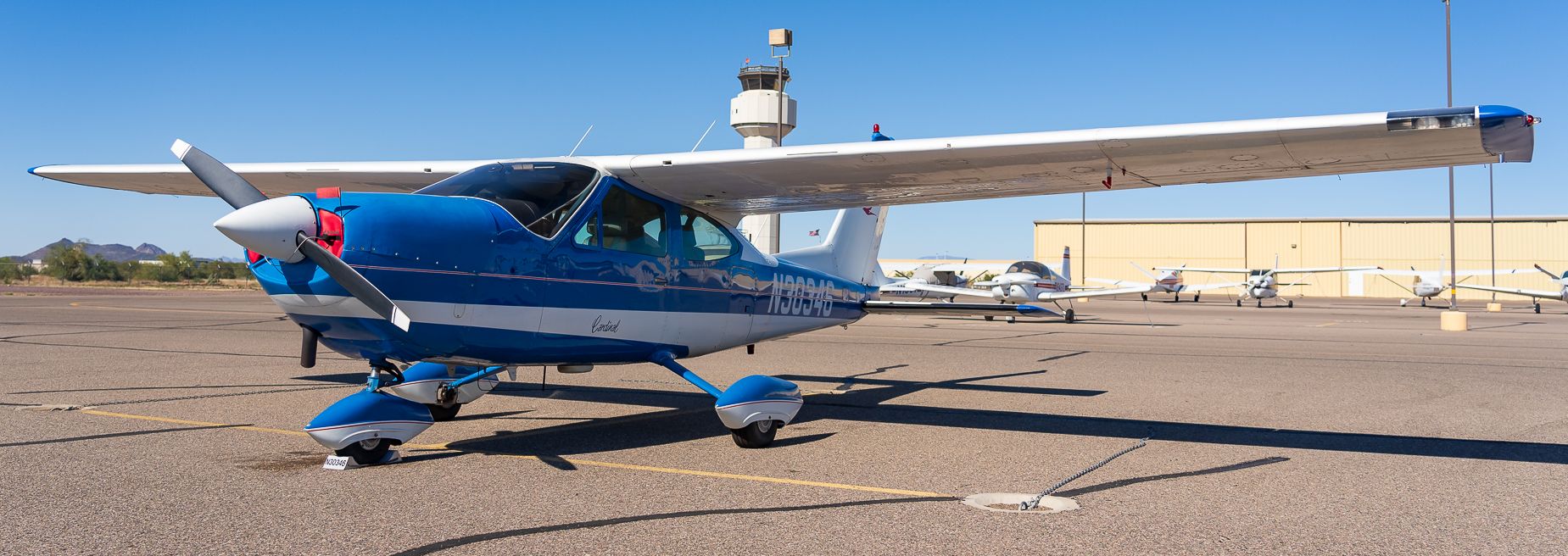

	This '69 Cardinal offers an affordable path into the air. The mid time engine is running strong with numerous updates such as Powerflow, SkyTech starter and Planepower alternator. The airframe has a long list of updates such as Maple Leaf lower cowl fairing, BAS seat belts and much more. The panel is simple but effective, with King KX155s, KMA24 and intercom. ADS-B is supplied by a uAvinoixs Tail Beacon. The interior was redone in 2012 and looks great. The high useful load and IFR certification make this an excellent trainer, time builder or fun flier.
Specifications: 1969 Cardinal 177A FG Registration: N30346 Serial Number: 17701203 Airframe TT: 3320 Engine TSOH: 1127 Prop: TSOH: 1164 (Fixed pitch) Useful Load: 957.88 lbs. The overhaul was completed in 2003 by Penn Yan Compressions: 76 / 75 / 72 / 76 Last Annual: 7/21/22 The aircraft is currently being flown so these numbers may grow slightly. The spar passed a visual inspection with Corrosion X applied in 2019 and again in 2022.	A recent (9/8/22) Cardinal Inspection by Keith Peterson is available for this aircraft at reduced cost. Click any photo for a larger image.

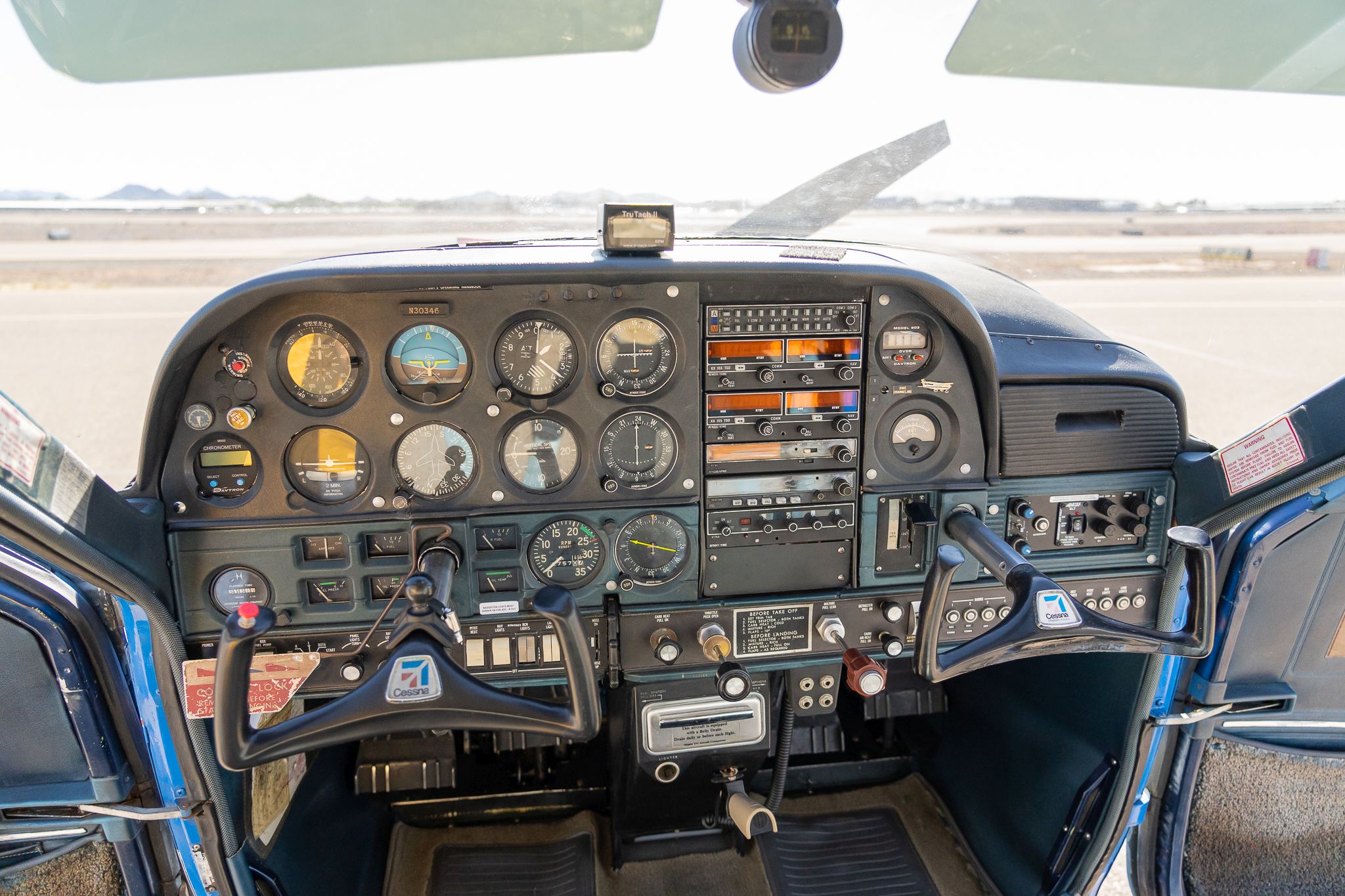

In The Panel: Nav1: King KX155 Nav2: King KX155 Audio Panel: King KMA24 Transponder: King KT76A ADS-B: Uavionix Tail Beacon Davtron 903 digital VOR indicator King KN64 DME Cessna EGT Sigtronics intercom Pilot PTT ELT: 406 Airtex ELT345 with position transmit Hobbs meter Fuselage mounted antenna for portable comm radio

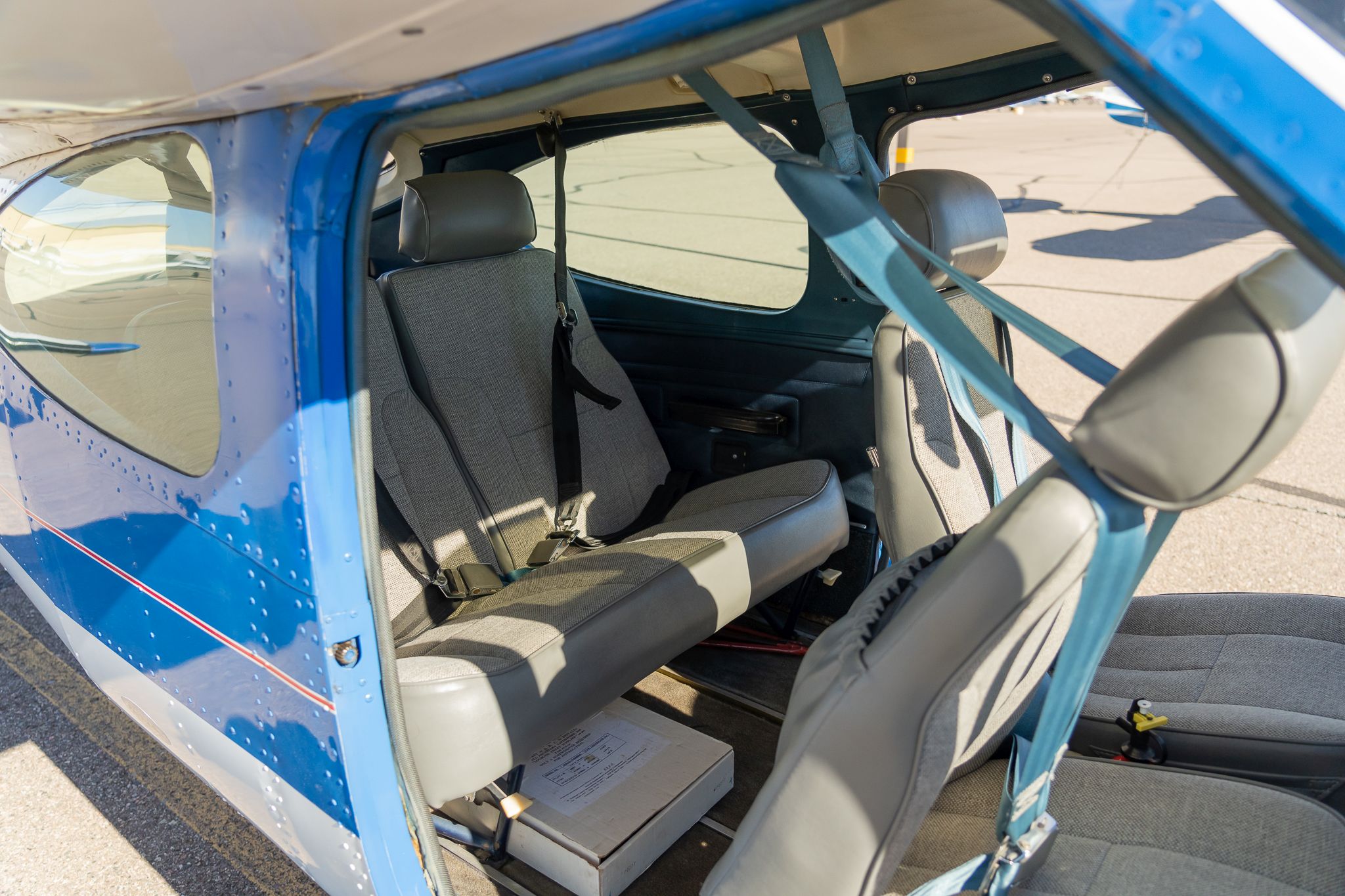

Installed Equipment: Airframe: Umbrella fuel caps Maple Leaf lower cowling BAS seat belts Whelen wing tip/belly strobes Whelen tail beacon Tinted visors Split back rear seat/headrests Wheel pants Cessna umbrella fuel caps Ground service plug Courtesy lights; under wing, pilot yoke, center pedestal Steps removed LED taxi/landing lights in wing Cowl plugs, Bruce's canopy cover Split back seats Rear seat shoulder harness Stene wing tips 2016 Stene stabilator tips 2015 Stene vertical stab tip/beacon mount 2015 Engine: Power Flow w/ short exhaust Sky Tec light weight starter Plane Power light weight alternator Brackett air filter Zeftronics regulator Precise Flight standby vacuum Spin-on oil filter adaptor Reiff engine heater pad on oil pan

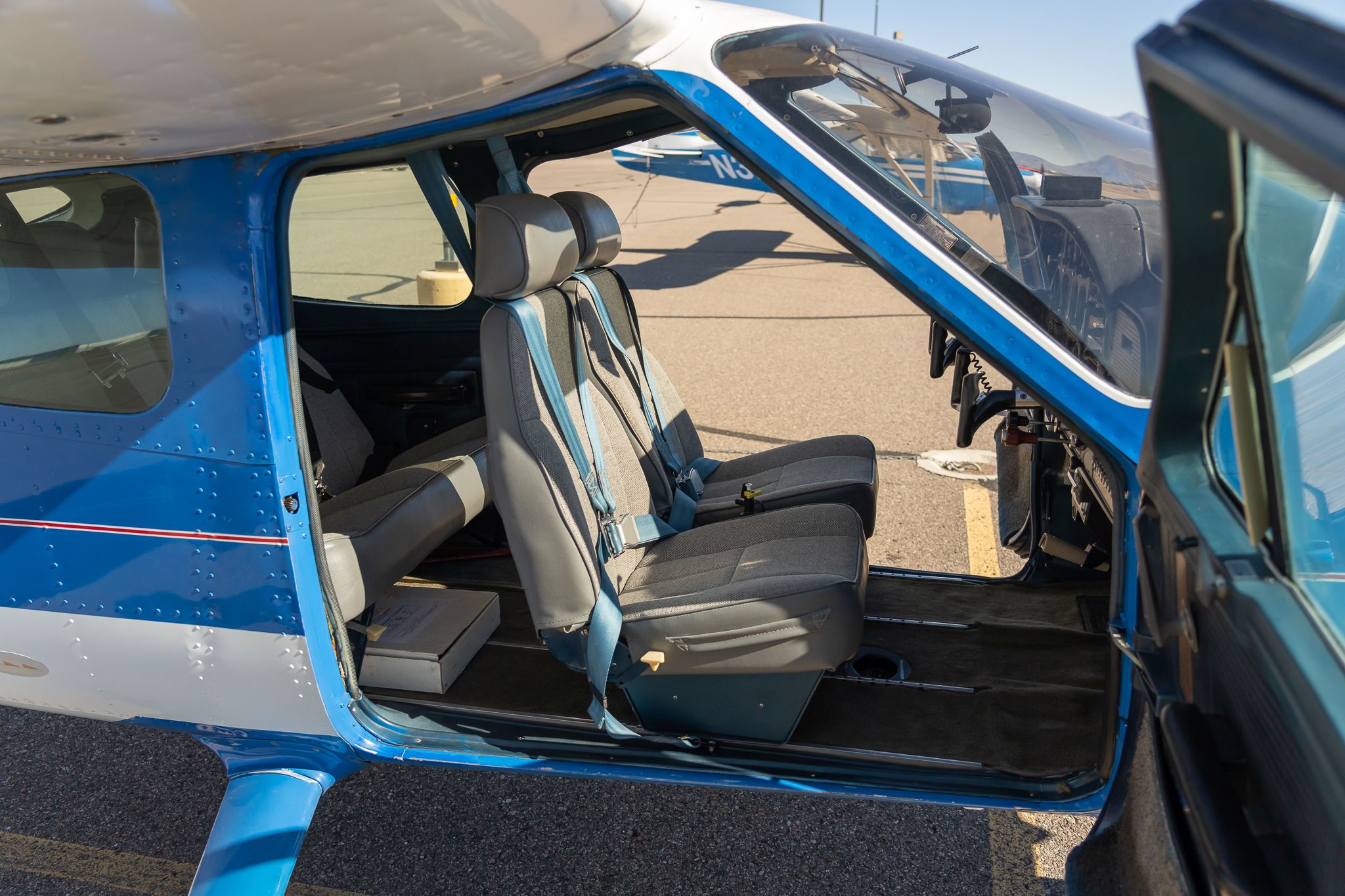

Paint and Interior Paint/windshield/rear window 2009 - very good condition Upholstery/headrests/carpet 2012 - very good condition There are a few small areas of filiform corrosion on the dorsal fin and under the wing. A custom cabin cover is included in the purchase. Recent Maintenance: Main tires 2022 Brakes 2021 Battery 2020 Oil cooler overhaul by Pacific Oil Coolers 2022 Yearly oil analysis since engine OH 2003

Price: Sold Current Location: Phoenix Deer Valley (KDVT) For more information please contact: Keith Peterson at keith@cardinalflyers.com or call me at 847-683-9878 (office - no voicemail) or 847-220-8577 (find me with voicemail)
Logs Engine Airframe Propeller More images


Although every effort has been made to accurately represent the specifications and condition of this aircraft, all information is presented with no warranties expressed or implied and subject to buyer verification. A pre-purchase evaluation for the benefit of the buyer is highly recommended. Aircraft availability is subject to prior sale or removal from market.
