1977 Cardinal 177RG
N52713
Sold


This well equipped Cardinal has dual WAAS navigators, Strikefinder and a Vizion Autopilot, along with very nice paint and a fabric interior in very good condition. The high useful load is a significant plus.

Other extras include CiES fuel senders, BAS seat belts, engine preheat, Umbrella fuel caps and many other highly desired upgrades.

The engine is mid time on an IRAN, and ready to provide hours of cross country travel in Cardinal Comfort.

Specifications:

1977 Cardinal 177 RG
Registration: N52713
Serial Number:177RG1255
Airframe TT: 4125
Engine TSOH: 2403
Engine TSIRAN: 1253
Engine Type: IO-360-A1B6D
Prop Type: 2 blade
Prop TSOH: 1253
Fuel Capacity: 60 gallons
Useful Load: 1019 lbs.
The overhaul was completed in 2003 by Lycoming
The IRAN was completed in 2010 by Pine Mountain Aviation.
Compressions: 78 / 78 / 76 / 79 /80

Last Annual: 6/3/24

The aircraft is currently being flown so these numbers may grow slightly.

Spar status: Passed 8-23-2023

 A past (03/13/2019) Cardinal Inspection by Keith Peterson is available for this aircraft at reduced cost.


Slideshow Below
Click any photo below for a larger image.

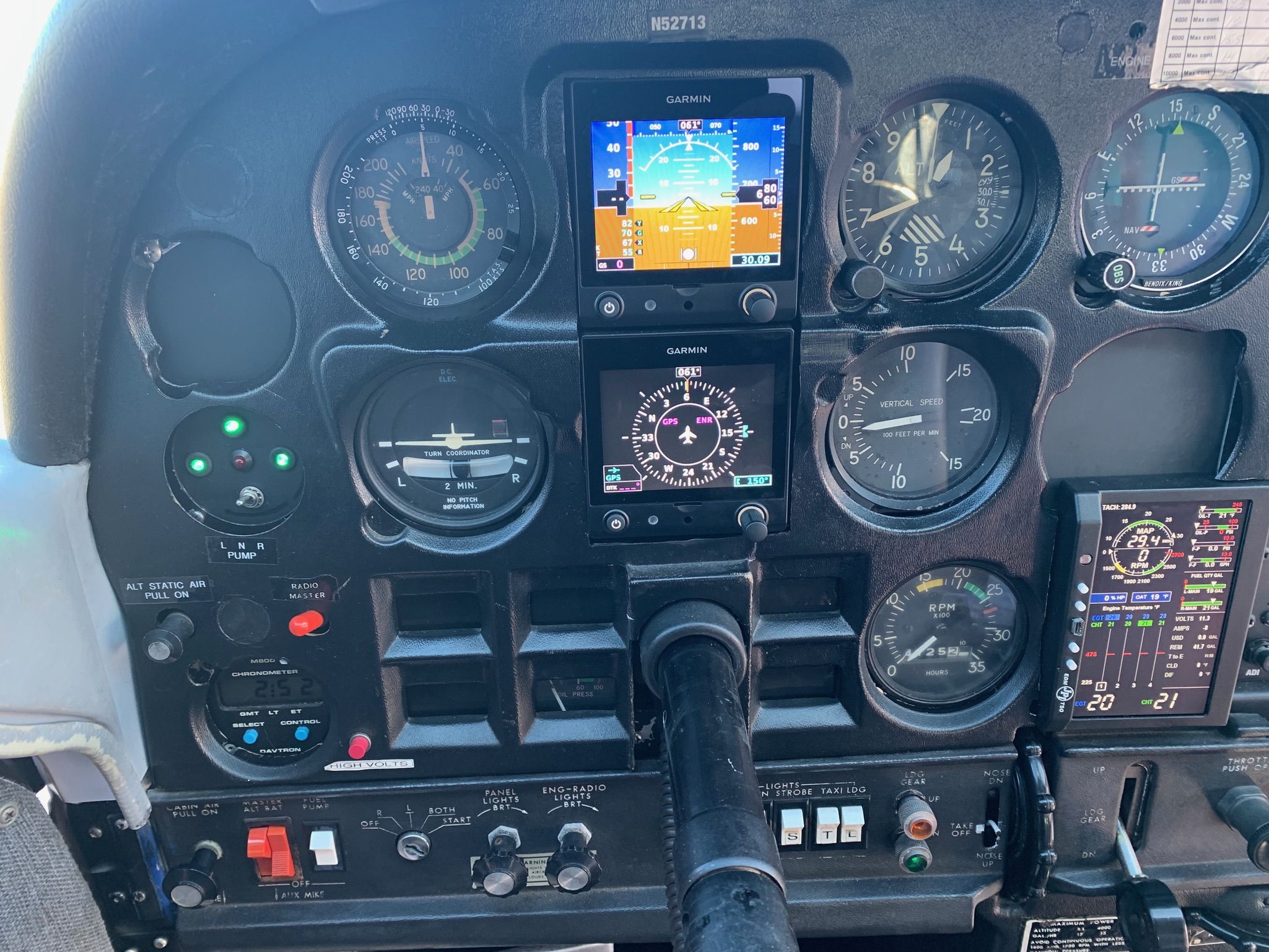

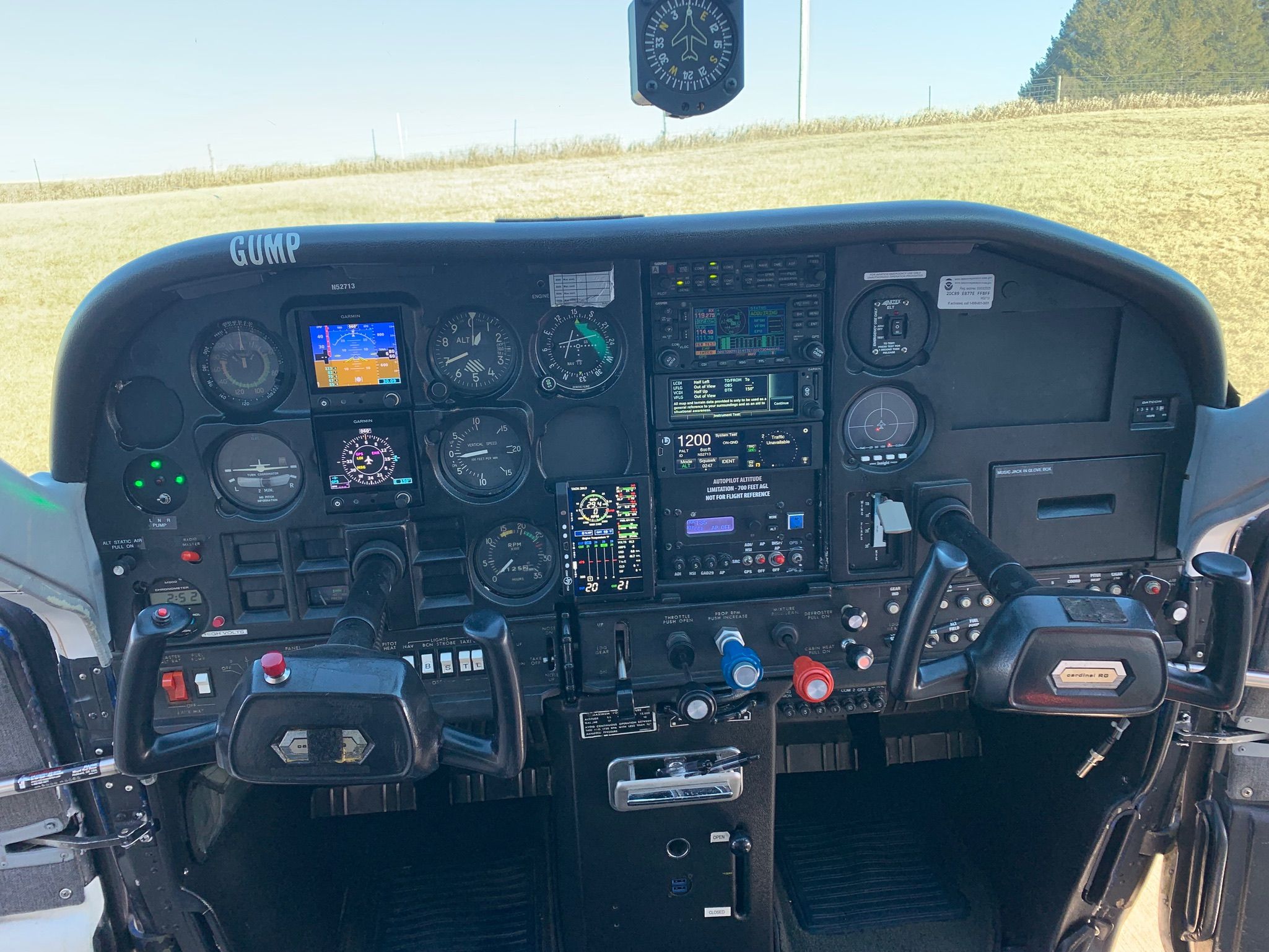

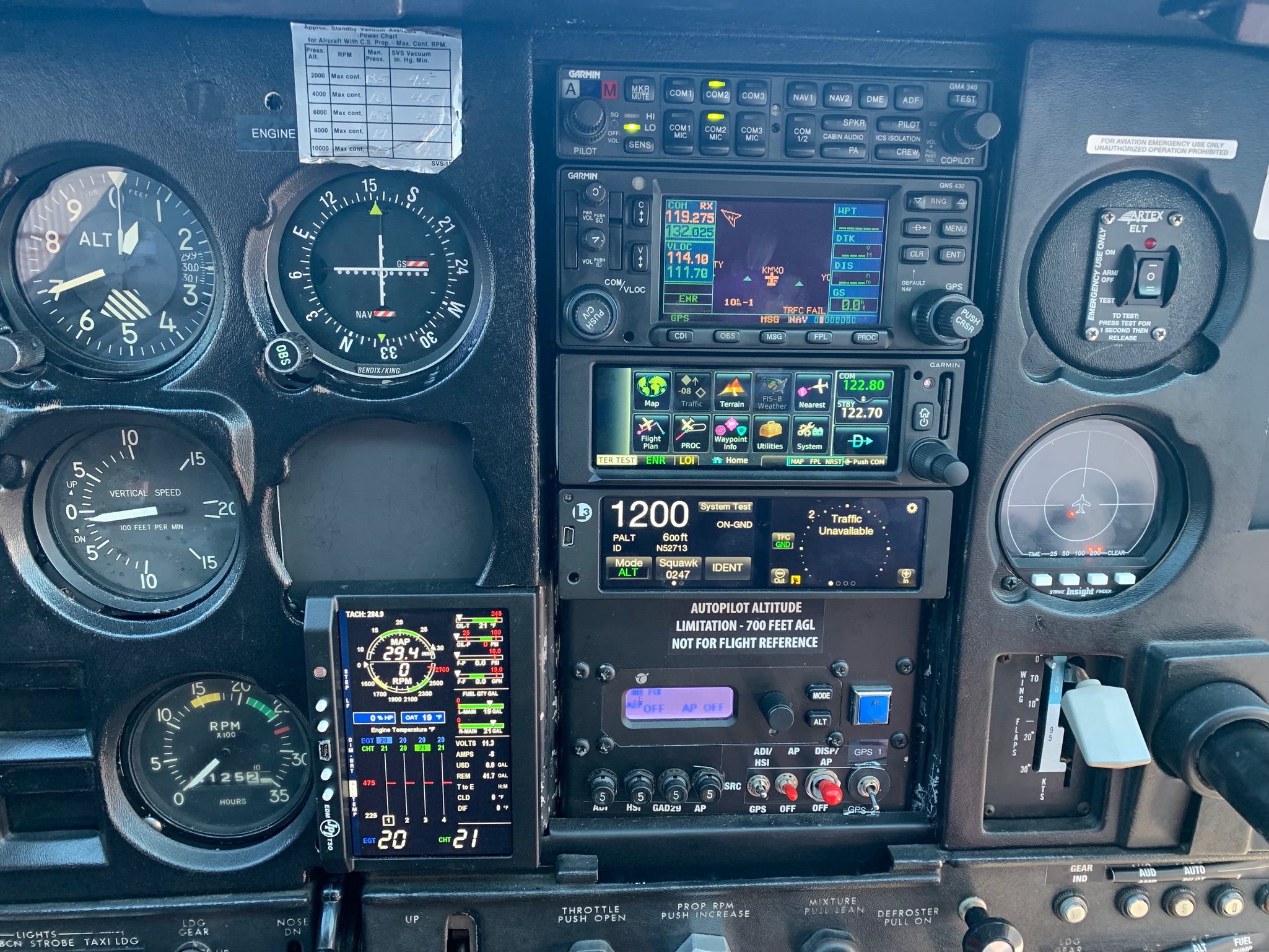

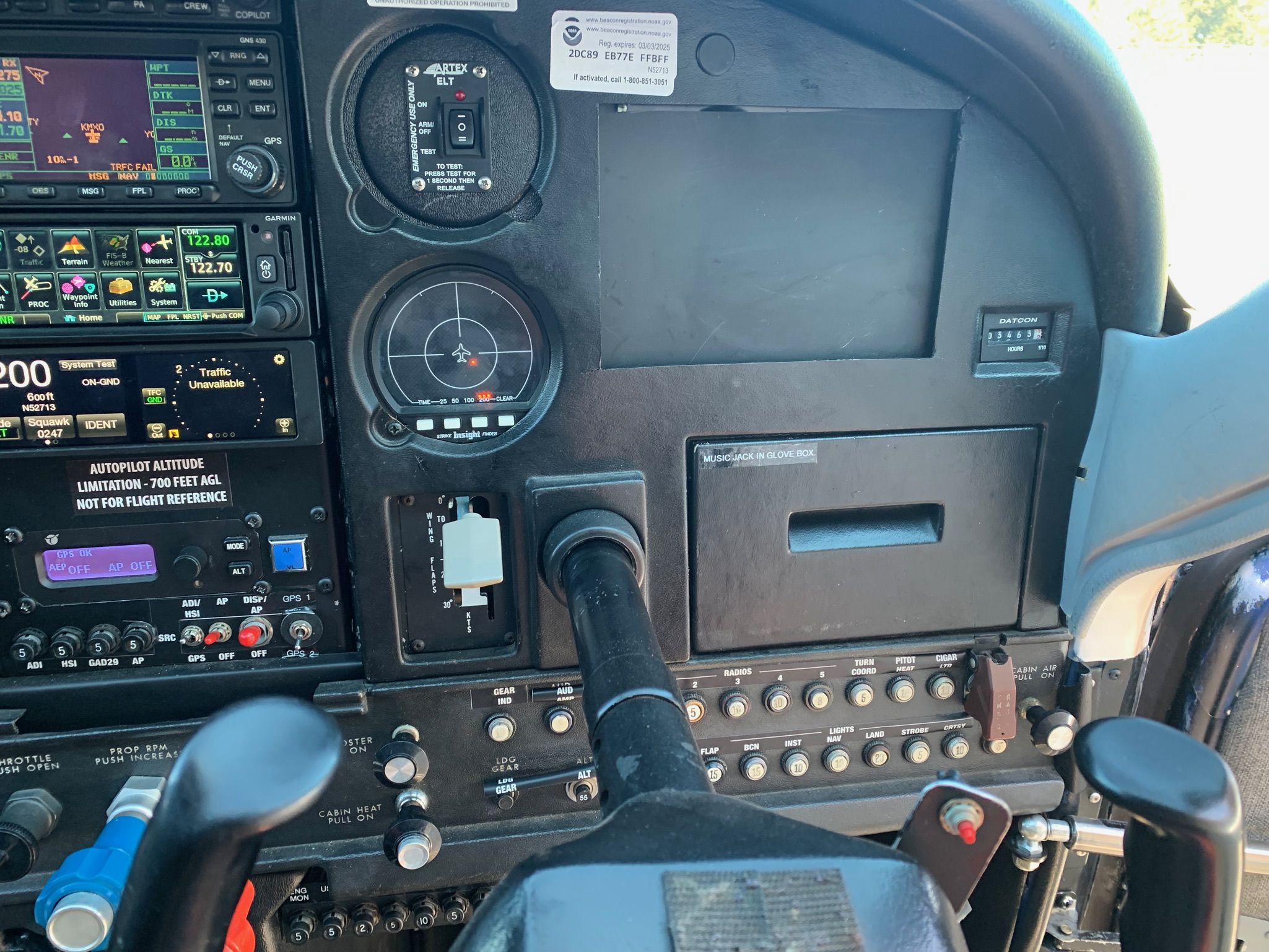

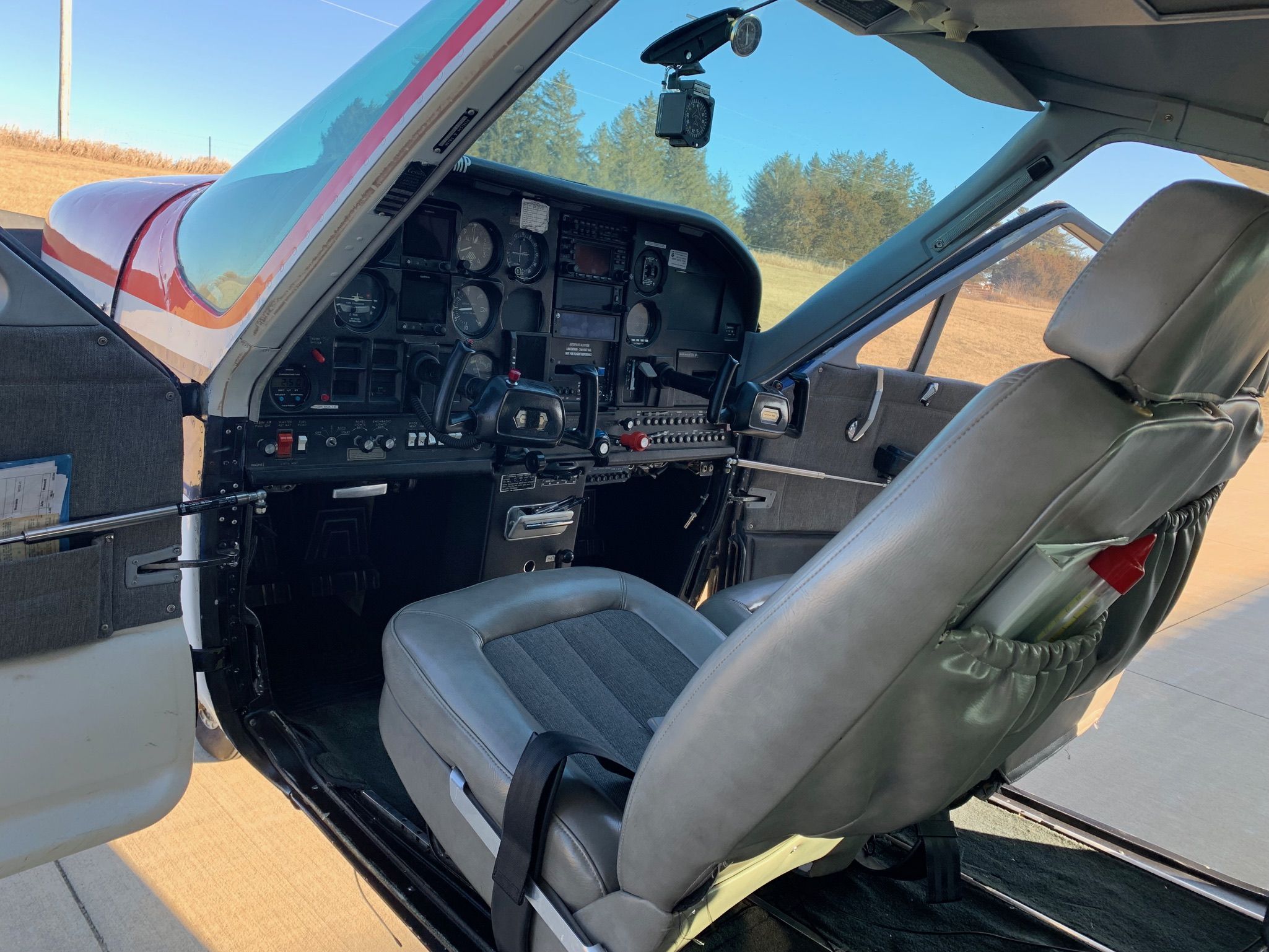

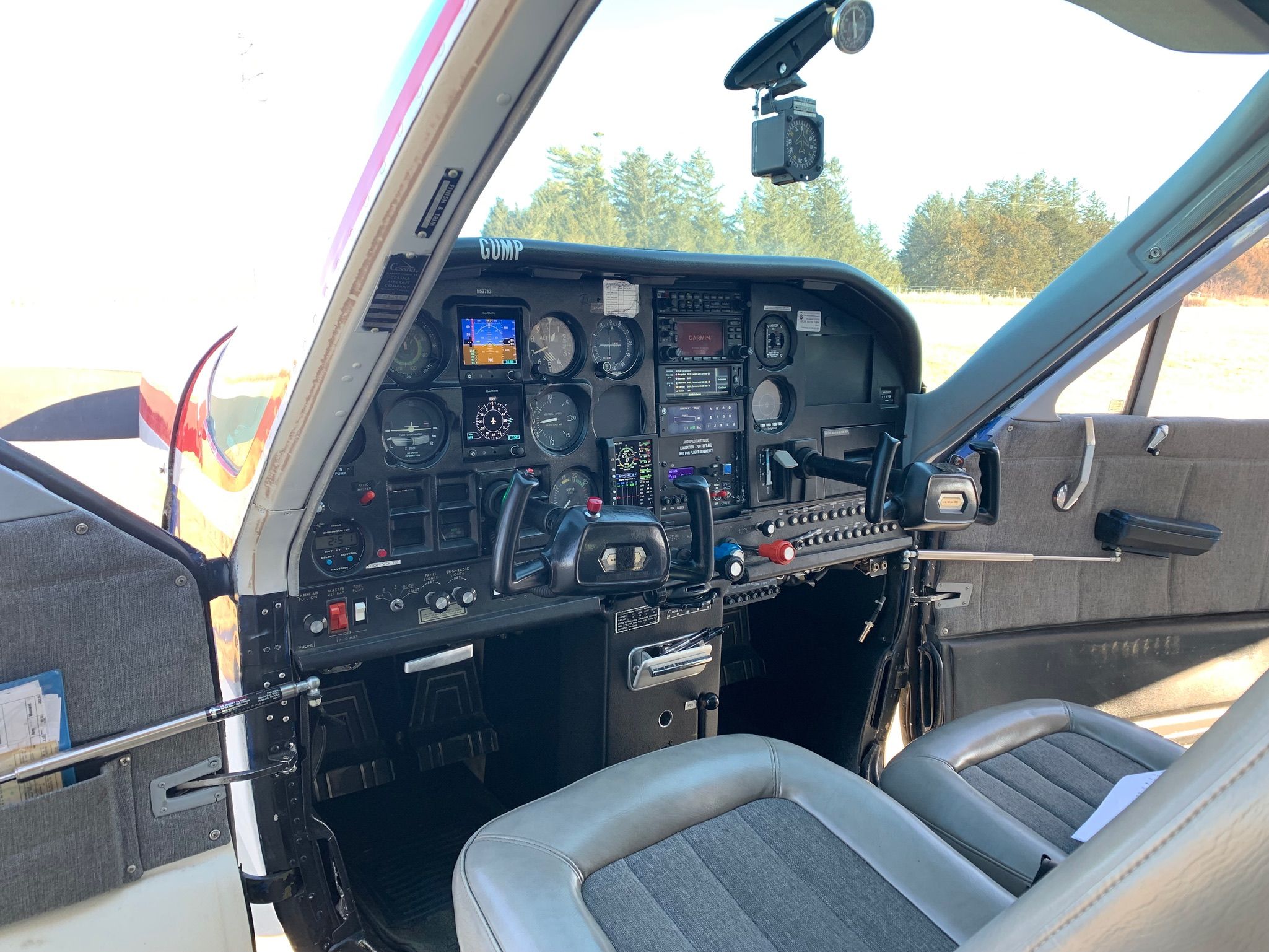

In The Panel:

NavComm1: Garmin GNC-355 WAAS GPS/Comm
NavComm2: Garmin GNS-430W
PFD: Dual Garmin G5
Audio Panel: Garmin GMA-340
Transponder: Lynx NGT-9000
ADS-B: Lynx NGT-9000
Insight Strikefinder
Autopilot: TruTrak Vizion, coupled to both NavComms and G5s, Alt hold
Engine Monitor: JPI EDM-900
Fuel Flow: JPI EDM-900
Fuel Sensors: CIES
ELT:Artex ELT-345

Installed Equipment:


Engine:
Engine Preheat (Pan and cylinders)
GAMI injectors
Challenger air filter

Airframe:
Articulating pilot seat
Landing gear mirror
LED lighting: LED Nav/Strobe/Beacon
Concorde Battery: RG-35AXC
Steel Stab Brackets
Cessna Umbrella (red fins) fuel caps
Two piece wheels
HID Landing Light
External VHF antenna and jack
Door Stewards
BAS Seatbelts
Landing gear running light

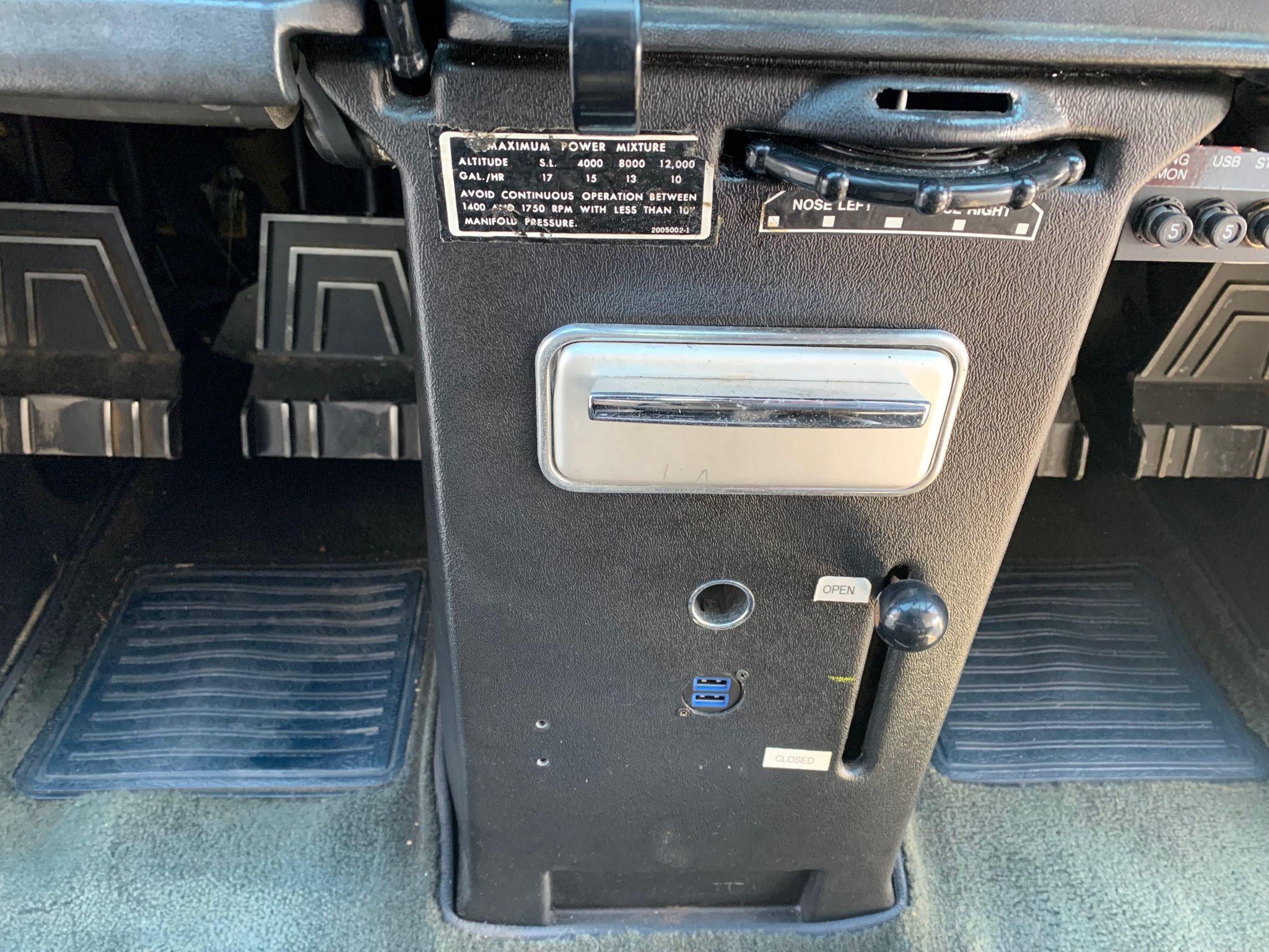

Garmin Dual USB Port GSB-15

Extras:
Custom cabin cover




Paint and Interior

Paint Condition: 7/10

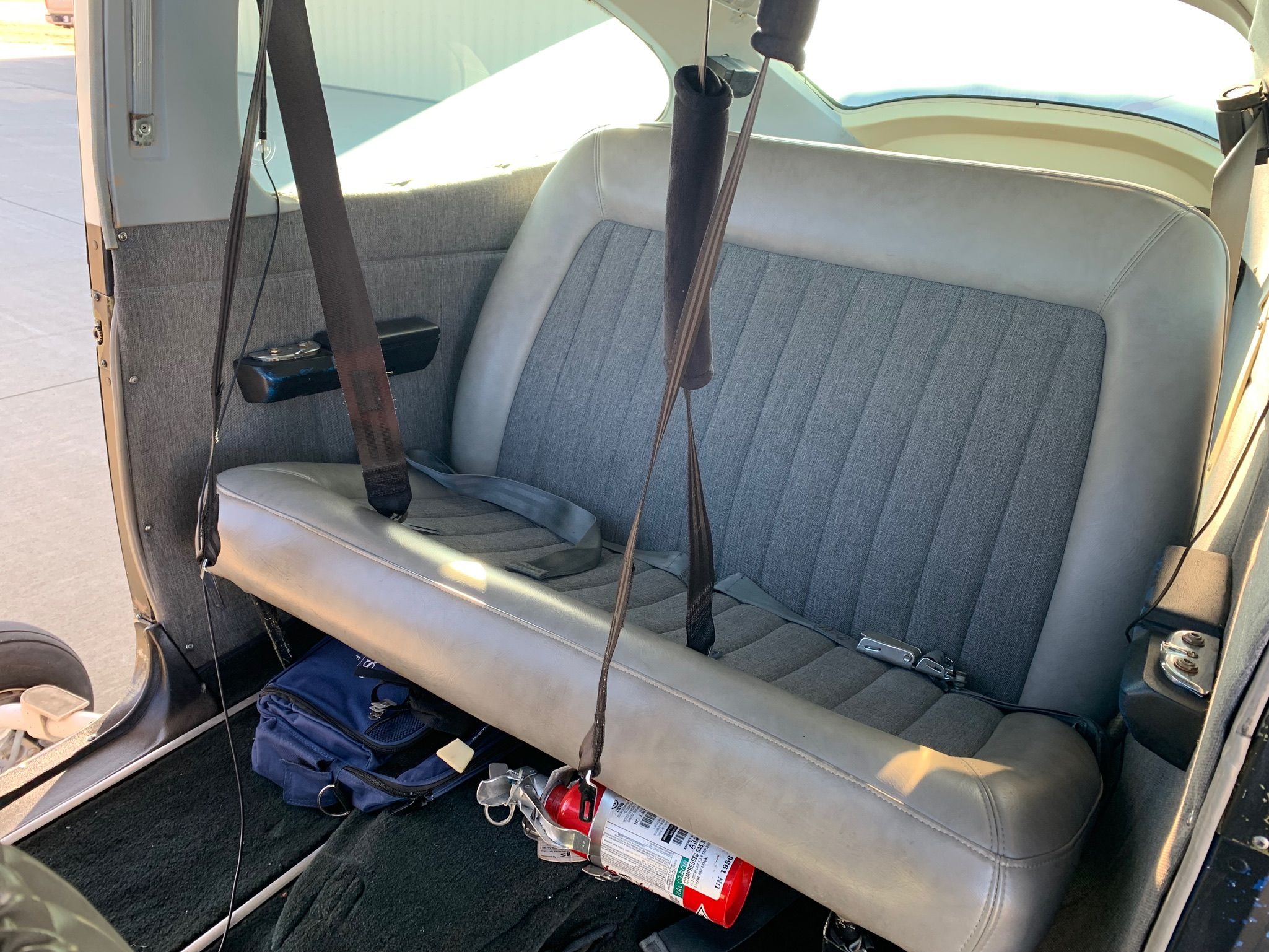

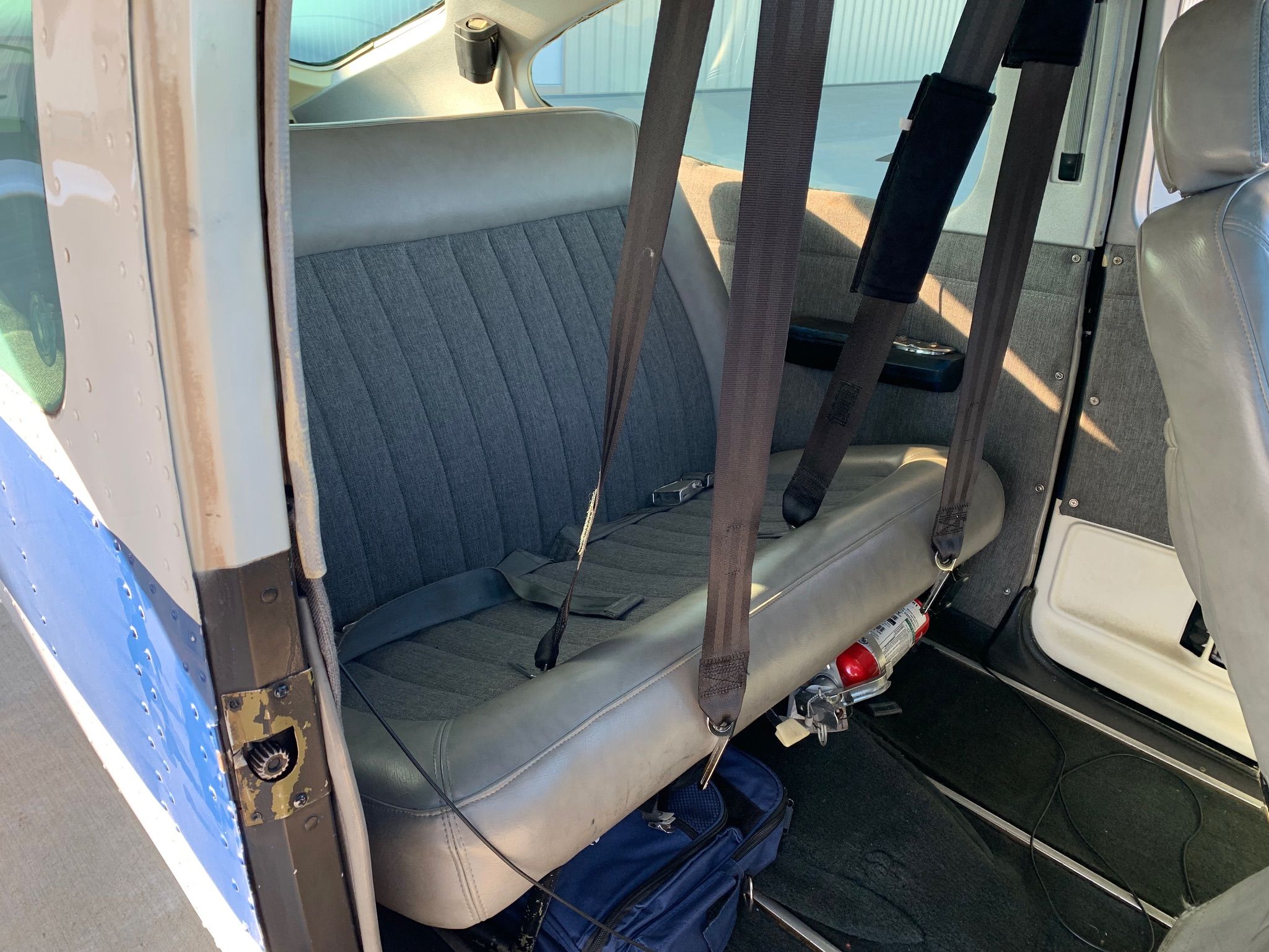

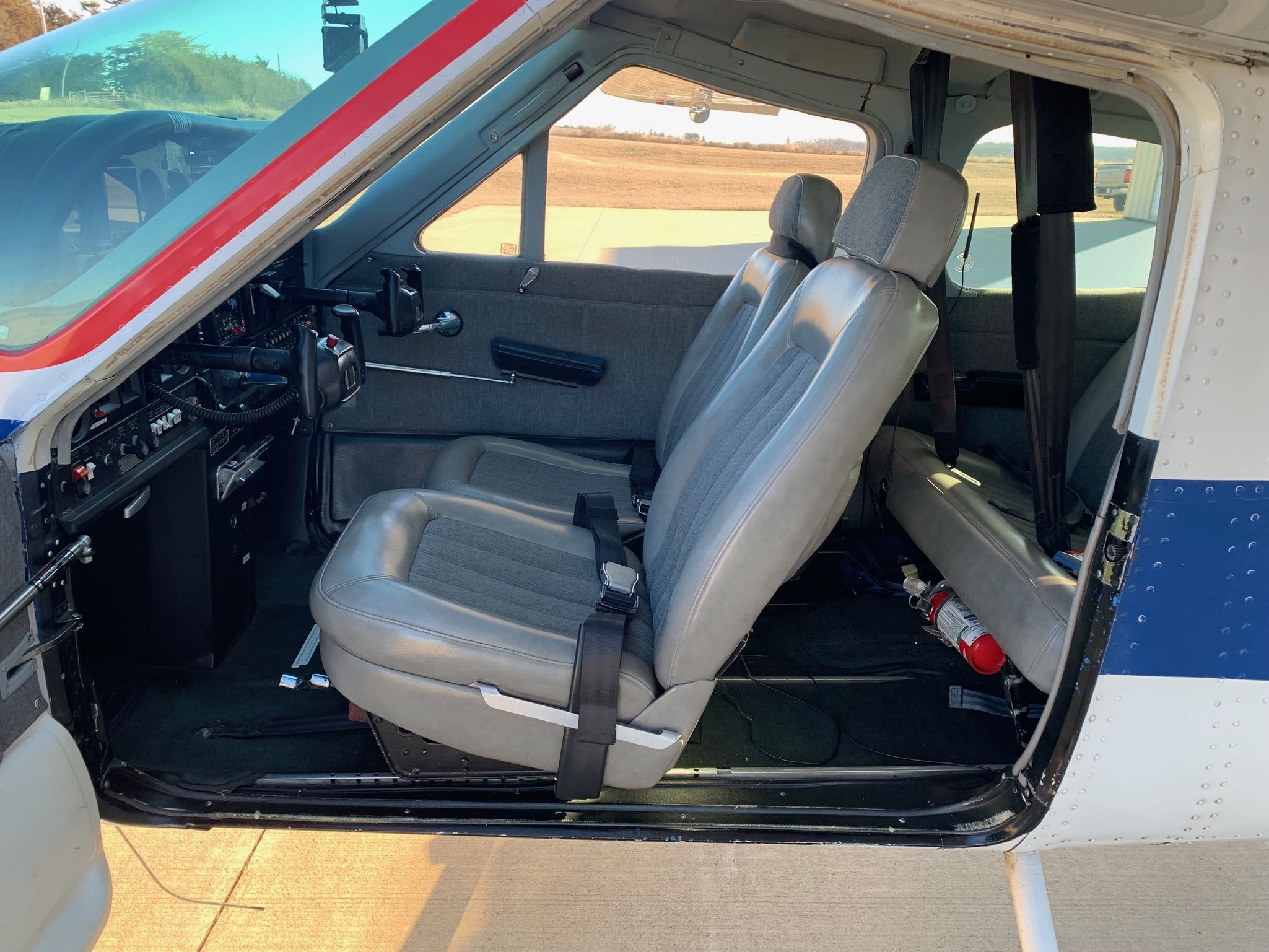

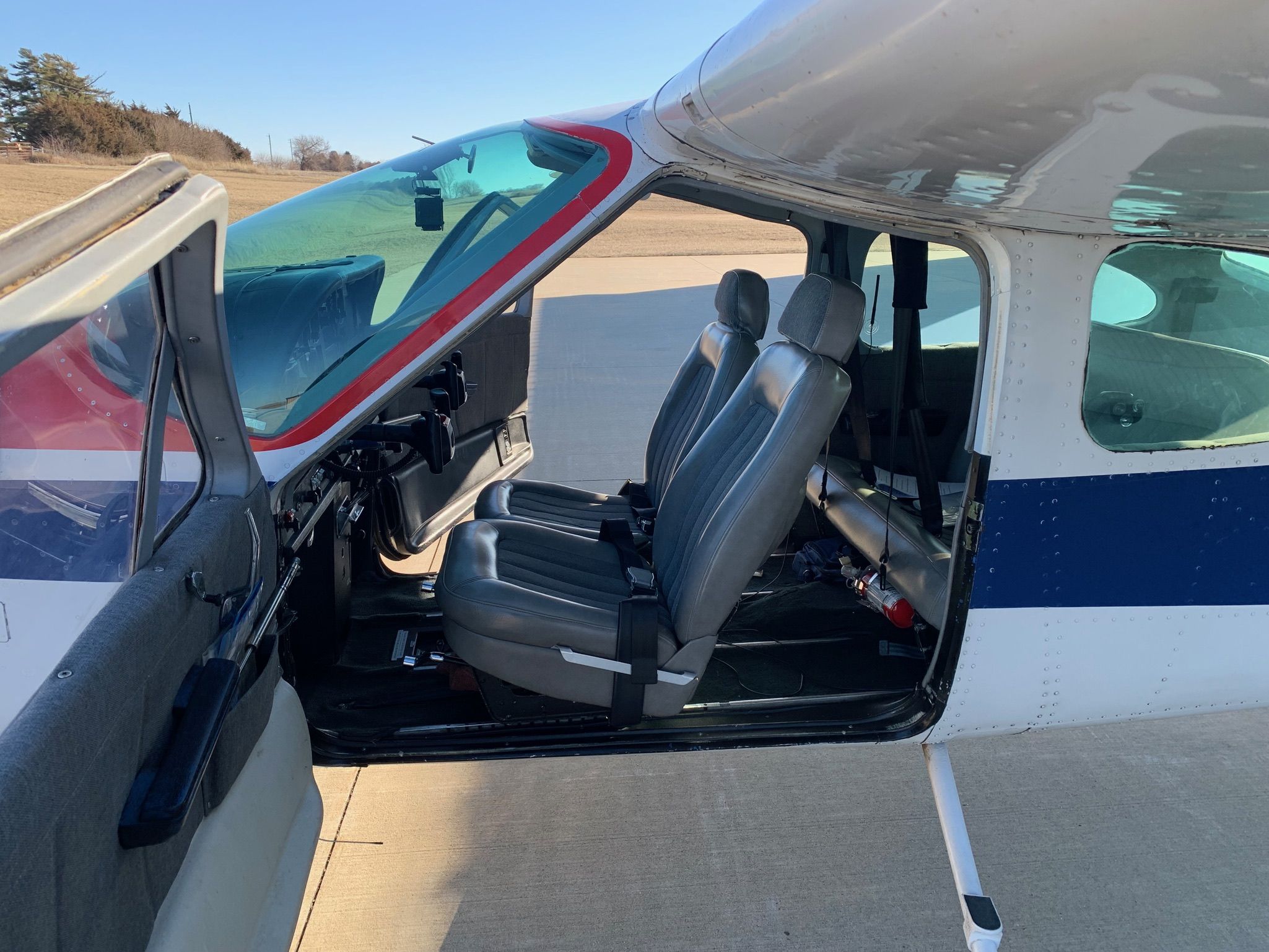

Seat Covering Type: Cloth Seat condition: 7/10
Plastic condition: 6/10

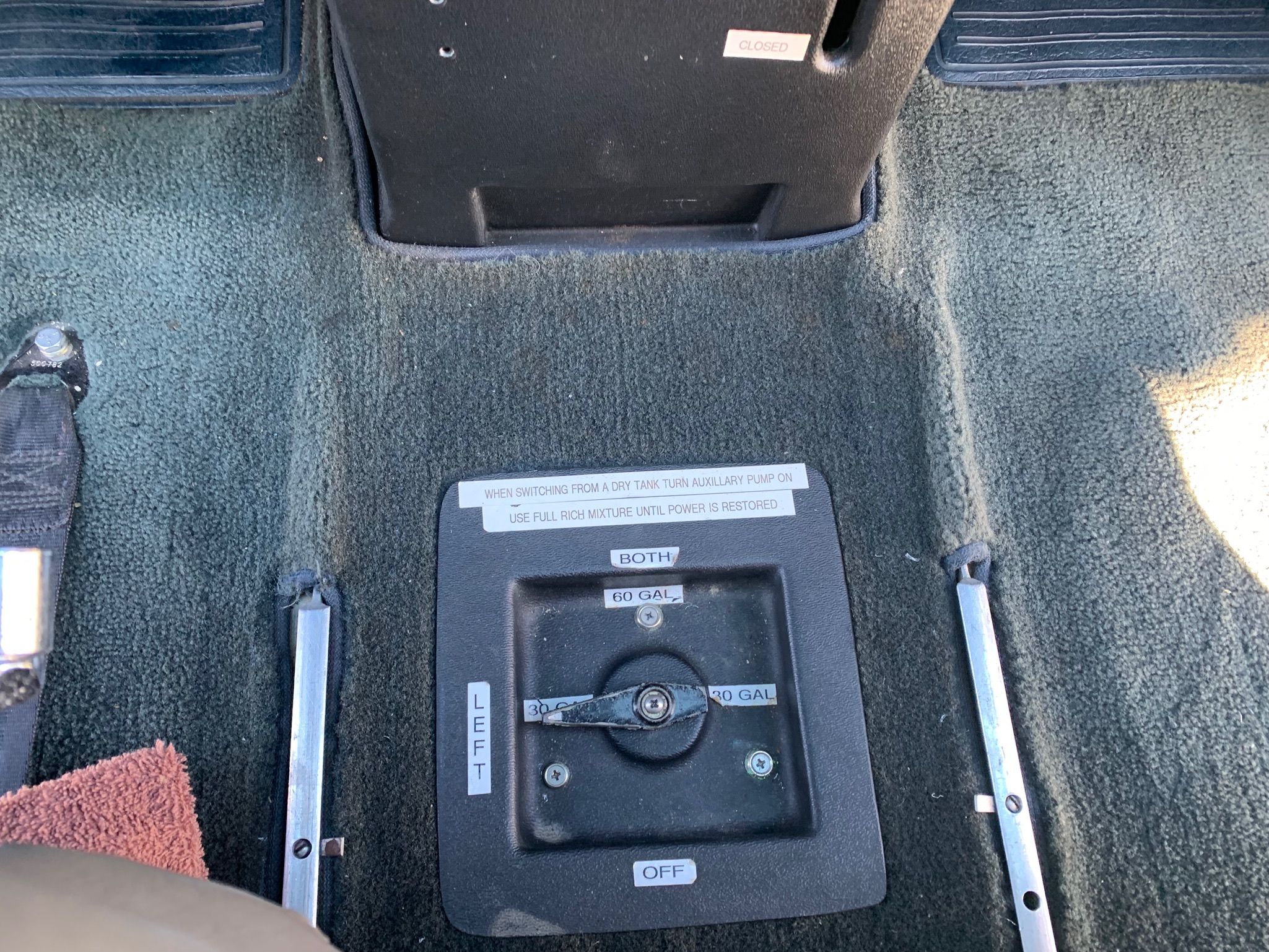

Carpet: 8/10
Windows: 7/10







Price: Sold

Current Location: Monticello, Iowa (KMXO)

For more information please contact:

Keith Peterson at keith@cardinalflyers.com
or call me at 847-683-9878 (office - no voicemail)
or 847-220-8577 (find me with voicemail)

Logs

Engine Log 2
Engine Log 3 (Lyc OH 2003)
Engine IRAN 2010 excerpt
Engine Log 4

Airframe Log 1
Airframe Log 2
Airframe/Engine Log 3
Airframe/Engine Log 3 Additional
Airframe Log 4

Avionics

Propeller Log 2
Propeller Log 3

Oil Analysis History

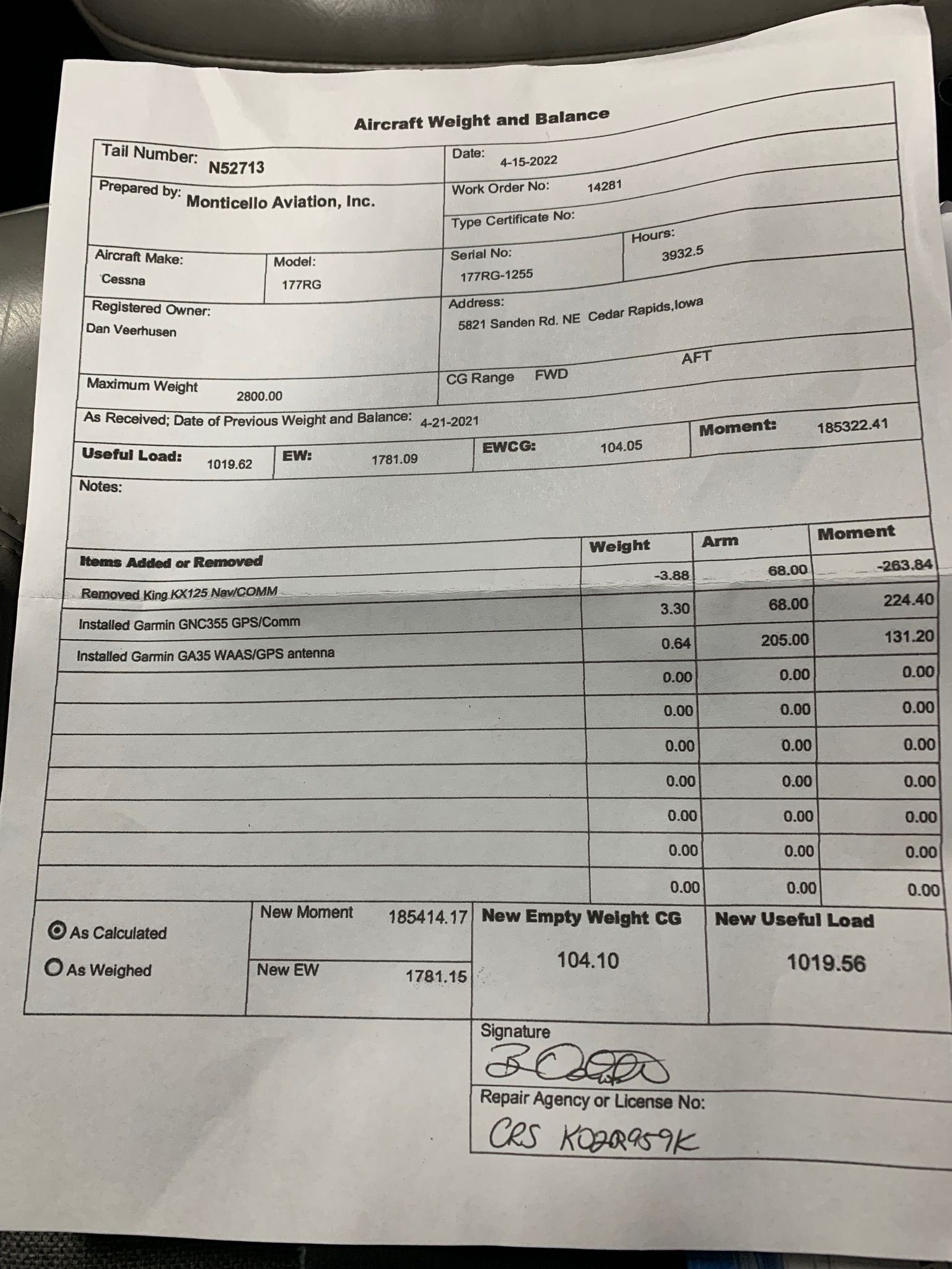

Weight & Balance

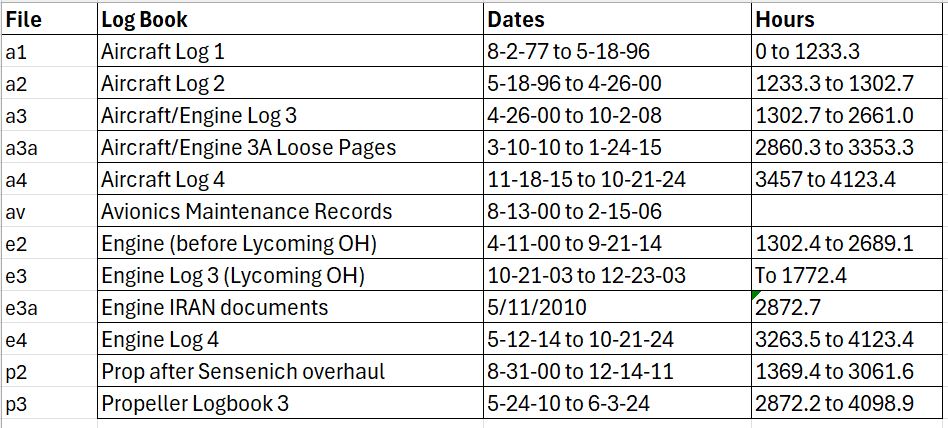

Logbook Details
